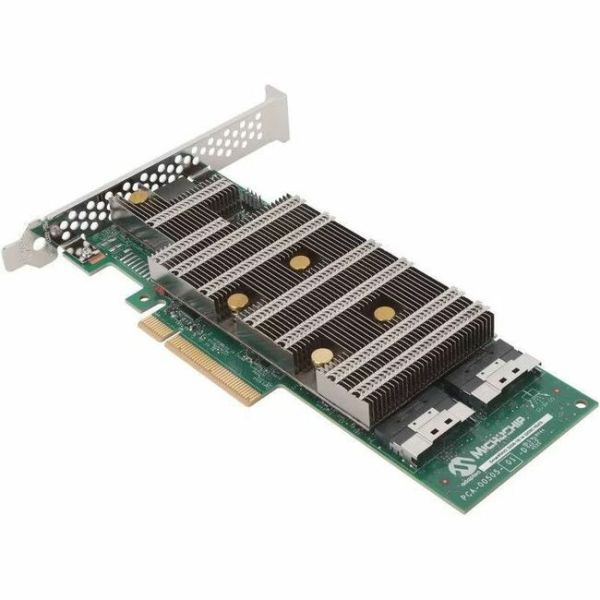

Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 RAID Adapter

Marketing Information

The Adaptec® SmartRAID 3258-16i /e RAID adapter offers maximum performance with SAS/SATA/NVMe Tri-Mode functionality for server OEM, storage systems, data center, and enterprise customers than previous generations.

Built on Microchip's proven 5th generation SmartROC 3200 storage controller, the SmartRAID 3258-16i /e supports a x8 PCIe Gen 4 host interface with 16 media facing port variants for internal Tri-Mode connectivity. New technologies available with the SmartRAID 3200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives... onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage.

SmartRAID 3200 adapters include Microchip's Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. For additional layers of security, Microchip has now expanded on its unique Adaptec maxCrypto Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media, and also supports Self-Encrypting Drive (SED) management software.

The SmartRAID 3200 RAID adapters also support both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market.

Specifications
Manufacturer: Microchip Technology Inc.
Manufacturer Part Number: 3258C16IX2S
Manufacturer Website Address: http://www.microchip.com
Brand Name: Microchip Adaptec
Product Line: SmartRAID
Product Series: 3200
Product Model: 3258-16i /e
Product Name: 24G SAS/SATA/NVMe PCIe Gen 4 RAID Adapter
Product Type: SAS/SATA/NVMe Controller
Technical Information
Host Interface: PCI Express 4.0 x8
Controller Type:

• 24Gb/s SAS
• Serial ATA/600
• NVMe

RAID Supported: Yes
Maximum Data Transfer Rate: 24 Gbit/s
Device Supported:

• Server
• Storage System

Interfaces/Ports
Total Number of SAS Ports: 16
Number of SAS Ports (Internal): 16
Physical Characteristics
Form Factor: Plug-in Card
