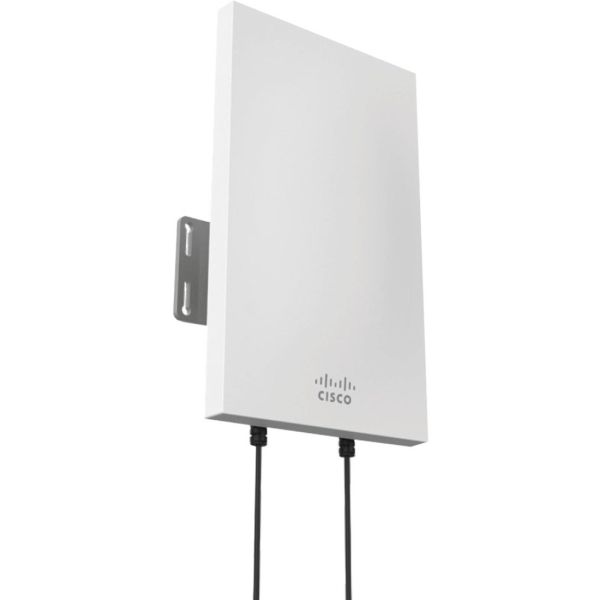

Meraki Dual-Band Sector Antenna (MA-ANT-27)

Marketing Information
The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual-band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MA-ANT-27
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Model: MA-ANT-27
Product Name: Dual-Band Sector Antenna (MA-ANT-27)
Product Type: Antenna
Technical Information
Operating Frequency Range:

• 2.4 GHz to 2.5 GHz...li>
• 5.15 GHz to 5.875 GHz

Antenna Gain (Isotropic): 12 dBi
Interfaces/Ports
Connector Type: N-connector
Physical Characteristics
Height: 231.1 mm
Width: 139.7 mm
Depth: 48.3 mm
Form Factor: Patch/Wall/Pole
Weight (Approximate): 635 g
Miscellaneous
Application/Usage: Wireless Access Point
