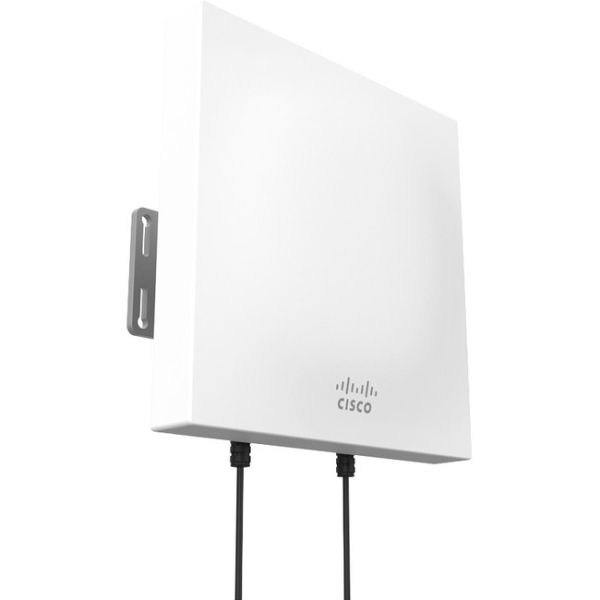

Meraki Dual-Band Patch Antenna, 8 / 6.5 dBi (MA-ANT-25)

Marketing Information
The Cisco Meraki MA-ANT-25 patch antenna is a 8 / 6.5 dBi, MIMO, dual-band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MA-ANT-25
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Model: MA-ANT-25
Product Name: Dual-Band Patch Antenna, 8 / 6.5 dBi (MA-ANT-25)
Product Type: Antenna
Technical Information
Frequency Band Type:

• UHF
...>SHF

Operating Frequency Range:

• 2.4 GHz to 2.5 GHz
• 5.15 GHz to 5.875 GHz

Antenna Gain (Isotropic): 8 dBi
Interfaces/Ports
Connector Type: N-Type
Physical Characteristics
Height: 180.3 mm
Width: 180.3 mm
Depth: 40.6 mm
Form Factor: Patch
Weight (Approximate): 499 g
Miscellaneous
Application/Usage: Wireless Data Network
Package Contents:

• Dual-Band Patch Antenna, 8 / 6.5 dBi (MA-ANT-25)
• Cables with Two N-type Connectors
• Mounting Hardware

Compatibility: Meraki Wireless Access Points:

• MR66
• MR72
