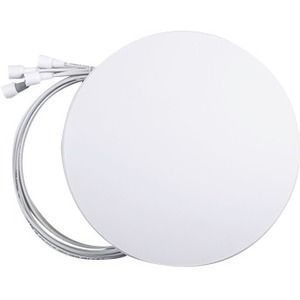

Meraki Panel Omni

Marketing Information
The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best-effort deployments usually have APs installed in the hallway to cover adjacent rooms.
Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MA-ANT-3-C6
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Name: Panel Omni
Product Type: Antenna
Technical Information
Directivity<.../span>: Omni-directional
Operating Frequency Range:

• 2.400 GHz to 2.500 GHz
• 5.150 GHz to 5.875 GHz

Antenna Gain (Isotropic): 4.9 dBi
Interfaces/Ports
Connector Type: RP-TNC
Physical Characteristics
Height: 35 mm
Diameter: 300 mm
Form Factor: Wall/Ceiling/Pole
Weight (Approximate): 1.05 kg
Miscellaneous
Application/Usage:

• Indoor
• Wireless Access Point

Compatibility:

Cisco Meraki MR53E Access Point
