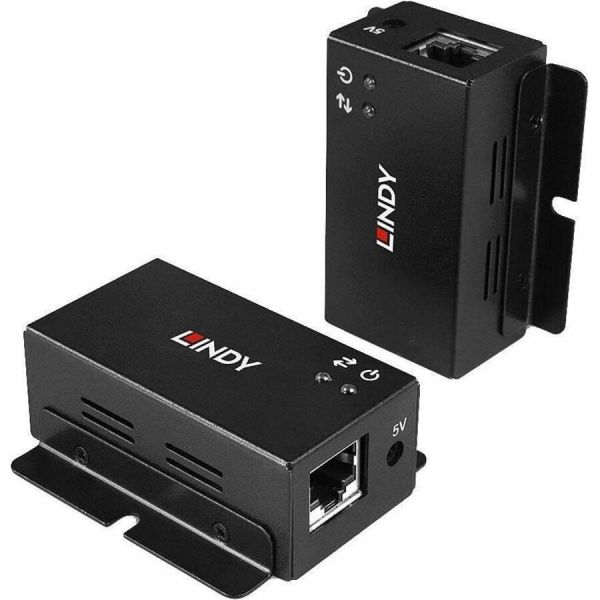

LINDY 50m 2 Port USB 2.0 Cat. 6 Extender

Marketing Information

• Extend 2 USB 2.0 ports up to 50m using low cost Cat.6 network cable (not included)
• Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
• Plug & Play installation
• 2 year warranty

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

T...he Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 43386
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 50m 2 Port USB 2.0 Cat. 6 Extender
Product Type: Network Extender
Technical Information
Maximum Extended Range: 50 m
Maximum Data Transfer Rate: 60 MB/s
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
USB: Yes
Number of USB Ports: 3
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
Miscellaneous
Package Contents:

• Transmitter Unit
• Receiver Unit
• 0.6m USB 2.0 A Male to B Male Cable
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
