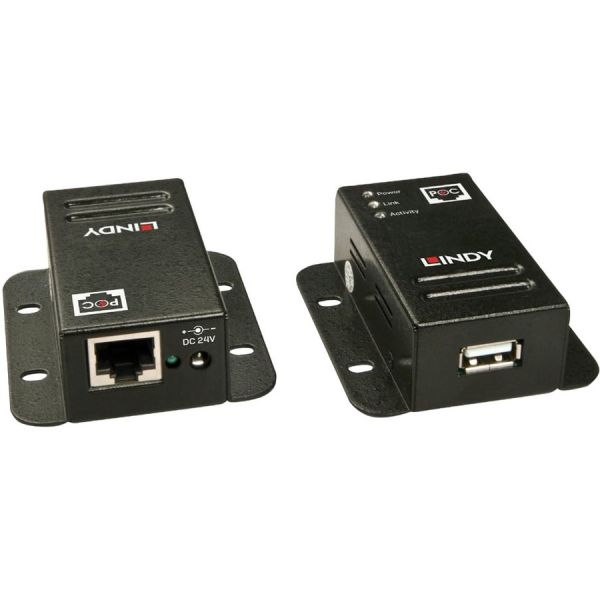

LINDY 50m USB 2.0 Cat.5 Extender

Marketing Information

• Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)
• Power over Cat.5/6 requires a single power supply to be connected to the transmitter only
• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
• Plug & Play installation
• 2 year warranty

The Lindy USB 2.0 Cat.5 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.

A standard, low cost Cat.5/5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit.

The Extender features Power over Cat.5/6, which requires a single power supply only to be connected to the transmitter uni...t. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 42680
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 50m USB 2.0 Cat.5 Extender
Product Type: Network Extender
Technical Information
Maximum Extended Range: 50 m
Maximum Data Transfer Rate: 60 MB/s
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
USB: Yes
Number of USB Ports: 2
Physical Characteristics
Product Color: Black
Product Material: Metal
Transmitter Weight (Approximate): 91 g
Receiver Weight (Approximate): 91 g
Miscellaneous
Package Contents:

• Transmitter Unit
• Receiver Unit
• 0.5m USB 2.0 A Male to B Male Cable
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Additional Information:

Connectors

• Transmitter Input: USB Type B (Female)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: 1 x USB Type A (Female)
• Power: 3.5/1.35mm DC socket

Physical Properties

• Dimensions WxDxH:
• 60x67x23mm (2.36x2.64x0.91in) (TX)
• 60x67x23mm (2.36x2.64x0.91in) (RX)
• Operating Temperature: -0° - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 24VDC 0.5A

Certifications & Standards:

• CE
• FCC

Warranty
Limited Warranty: 2 Year
