LINDY 140m Cat.6 DVI-D, USB, Audio & RS-232 KVM Extender

Marketing Information

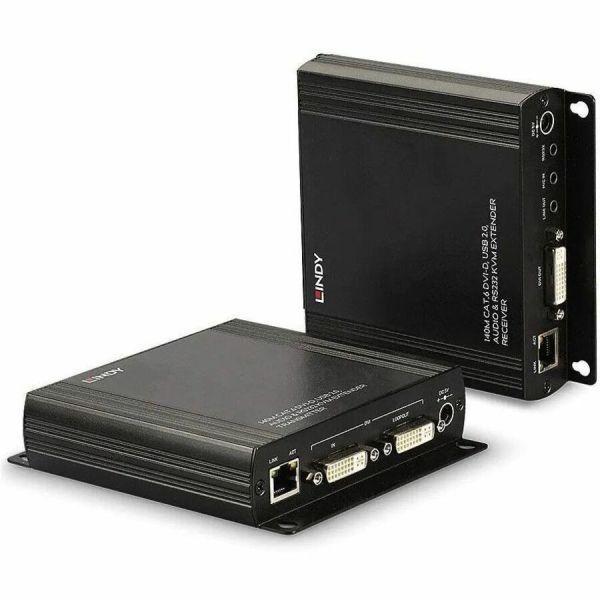

 The Lindy Cat.6 DVI-D Single Link, USB, Audio & RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).

The extenders built-in EDID function ensures maximum ...compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.

RS-232 connections also allow for integration into pre-installed control systems.

This extender provides a simple plug & play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.

Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 39245
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 140m Cat.6 DVI-D, USB, Audio & RS-232 KVM Extender
Product Type: KVM Extender
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 140 m
Device Type: KVM Extender
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DVI: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 5
Number of DVI Ports: 3
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 30 mm
Transmitter Width: 125 mm
Transmitter Depth: 140 mm
Receiver Height: 30 mm
Receiver Width: 125 mm
Receiver Depth: 140 mm
Transmitter Weight (Approximate): 1.27 kg
Receiver Weight (Approximate): 1.27 kg
Miscellaneous
Package Contents:

• Transmitter Unit
• Receiver Unit
• 1 x USB Type A/B Cable, 1.45m
• 1 x 3.5mm to RS232 DB9 Male Cable, 1.80m
• 1 x 3.5mm to RS232 DB9 Female Cable, 1.80m
• 2 x Multi-Country Power Supply (EU, UK, US, AUS)
• 8 x Screws And Dowels
• Lindy Manual

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
