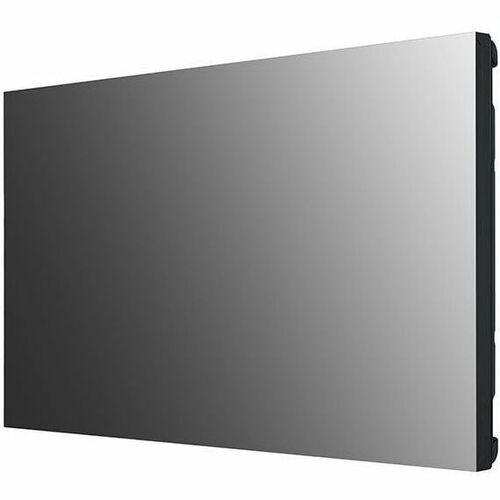

LG 55'' 500 Nits FHD Slim Bezel Video Wall

Marketing Information

Artistic Immersion, Overwhelming Captivation | Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video w...alls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in "full-white" mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

Specifications
Manufacturer: LG Electronics
Manufacturer Part Number: 55VM5JH
Manufacturer Website Address: http://www.lge.co.uk
Brand Name: LG
Product Model: VM5J-H
Product Name: 55'' 500 Nits FHD Slim Bezel Video Wall
Product Type: Digital Signage Display
Technical Information
Video Wall Compatible: Yes
Bezel Width: 1.74 mm
Bezel Width (Bottom): 0.44 mm
Bezel Width (Top): 1.30 mm
Bezel Width (Left): 1.30 mm
Bezel Width (Right): 0.44 mm
Display & Graphics
Number of Screens: 1
Screen Size: 55"
Display Screen Type: LCD
Display Resolution: 1920 x 1080
Backlight Technology: Direct LED
Video
Scan Format: 1080p
Dynamic Contrast Ratio: 500,000:1
Colour Depth: 10-bit
Brightness: 500 cd/m²
Color Gamut: 72% NTSC
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
DVI: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 2
Number of DisplayPorts: 2
Number of DVI Ports: 1
Software
Operating System: webOS 4.1
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Standard: 600 x 400
Height: 68.3 cm
Width: 121.2 cm
Depth: 8.7 cm
Weight (Approximate): 18.80 kg
Miscellaneous
Energy Star: Yes
