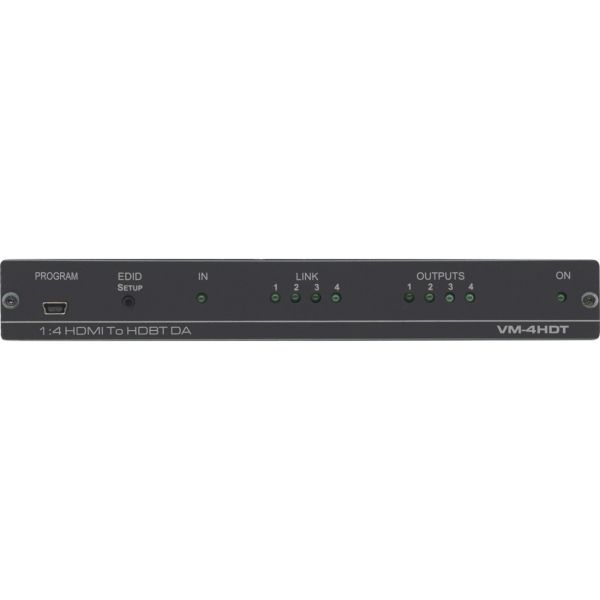

Kramer 1:4 4K UHD HDMI to HDBaseT Distribution Amplifier

Marketing Information

The VM-4HDT is a high-quality 1:4 4K UHD HDMI to HDBT distribution amplifier that takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical HDBT outputs. The VM-4HDT distributes signals having resolutions of up to 4K and including WUXGA and 1080p.

• Maximum Data Rate - 10.2Gbps (3.4Gbps per graphic channel).

• Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).

• HDMI Support - 3D, Deep Color, x.v.Color™, 3D.

• HDCP Compliance - Sources that support HDCP output HDCP protected content.

• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances....

• I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.

• Default EDID - For fast and efficient connection.

• 3D Pass-Through.

• Range - 70m (230ft).

• Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: VM-4HDT
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: VM-4HDT
Product Name: 1:4 4K UHD HDMI to HDBaseT Distribution Amplifier
Product Type: Audio/Video Distribution Amplifier
Video
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
HDMI In: Yes
Network (RJ-45): Yes
Serial Port: Yes
Number of HDMI Inputs: 1
Number of Network (RJ-45) Ports: 4
Media & Performance
Maximum Operating Distance: 70 m
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Height: 29.2 mm
Width: 188 mm
Depth: 115.1 mm
Weight (Approximate): 460 g
