Kramer MegaTOOLS EXT3-XR-TR Video Extender Transmitter - Wired

Marketing Information
EXT3-XR-TR is a high-performance, extended-reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS-232, and IR signals over twisted pair, flexibly set as transmitter-side or receiver-side device. EXT3-XR-TR transmitter-side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3-XR-TR receiver-side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution

FEATURES

High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-600TRxr is a standard extender t...hat can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
HDMI Signal Extension - HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
HDMI Mirroring - Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain
Flexible USB 2.0 Extension - An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices
Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line

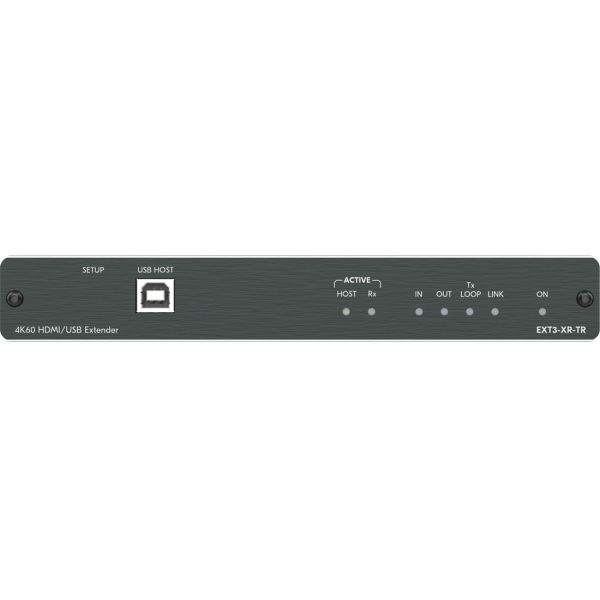

Cost-effective Maintenance - Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting
Easy and Elegant Installation - MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter
Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: EXT3-XR-TR
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Line: MegaTOOLS
Product Model: EXT3-XR-TR
Product Name: MegaTOOLS EXT3-XR-TR Video Extender Transmitter
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 100 m
Video
Graphics Modes: 4K UHD
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Physical Characteristics
Transmitter Height: 27 mm
Transmitter Width: 190 mm
Transmitter Depth: 116 mm
Form Factor:

• Ceiling Mount
• Rack-mountable
• Desktop

Transmitter Weight (Approximate): 600 g
