Intellinet PoE++ Extender

Marketing Information

This PoE++ Extender doubles the range of two Gigabit Power over Ethernet connections - even in harsh outdoor conditions

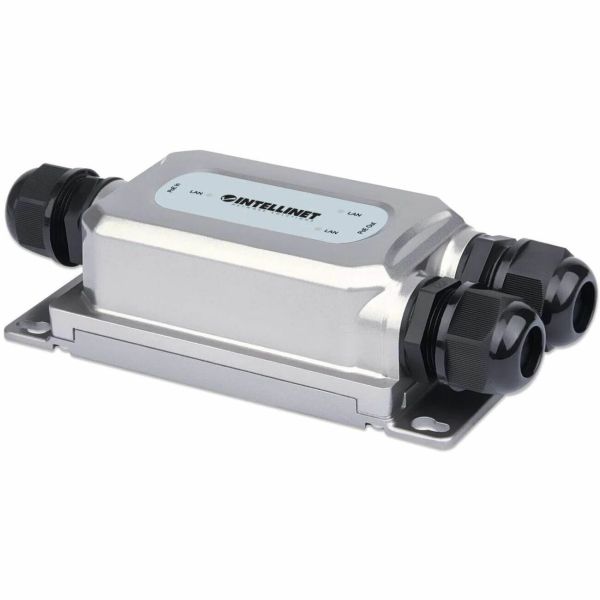

The Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit PoE++ Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to one or two output devices via Cat5e or Cat6 cable. This PoE++ (4PPoE) extender does not need an additional power supply since it draws its power from the PoE input.

Designed for Outdoor Use

This PoE++ extender is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating, vast operating temperature range of -20 - 60°C (-4 - 140°F) and vandal-...proof IK10 score make the Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit Ultra PoE Extender able to withstand harsh conditions.

Reduced Wiring Costs

This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera, IP phone, or other compatible device. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.

Power over Ethernet 802.3bt Compliant

This Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).

Simple Installation

 This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 561648
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: PoE++ Extender
Product Type: PoE++ Extender
Technical Information
Protection Type:

• Short Circuit
• Over Voltage
• Surge Protection

Power Description
Input Voltage: 57 V DC
Maximum Output Power: 60 W
Interfaces/Ports
Input Ports: 1 x RJ-45
Output Ports: 2 x RJ-45
Physical Characteristics
Form Factor: Wall Mountable
Height: 150 mm
Width: 73 mm
Depth: 44 mm
Weight (Approximate): 353 g
Miscellaneous
Package Contents:

• PoE++ Extender
• Earthing Kit
• Three IP67-Rated Cable Glands
• Instructions

Certifications & Standards:

• IEEE 802.3bt
• IP67
• IK10-rated
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3i
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3u
• FCC Class A
• CE

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Warranty
Limited Warranty: 3 Year
