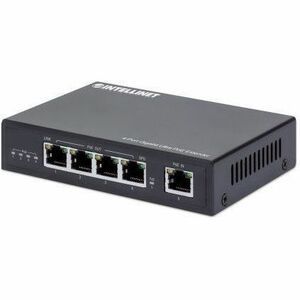

Intellinet 4-Port Gigabit Ultra PoE Extender

Marketing Information

Gigabit PoE Extender - for doubling the range of a Gigabit Power over Ethernet connection

The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to four output devices via Cat5e or Cat6 cable. This PoE++ extender does not need an additional power supply since it draws its power from the PoE input.

Reduced Wiring Costs

This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.

Power over E...thernet 802.3bt Compliant

The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).

Simple Installation

This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its "PoE In" port to your PoE injector or PoE switch and to connect the "PoE Out" ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 561617
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: 4-Port Gigabit Ultra PoE Extender
Package Type: Retail
Product Type: Network Extender
Technical Information
Maximum Extended Range: 200 m
Maximum Data Transfer Rate: 1.25 GB/s
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 5
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
Height: 29 mm
Width: 130 mm
Depth: 86 mm
Miscellaneous
Package Contents:

• 4-Port Gigabit Ultra PoE Extender
• 4 x Rubber Feet
• Instructions

Additional Information:

Standards

• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Full duplex and flow control)
• IEEE 802.3u (100Base-TX Fast Ethernet)

General

• Media support:
• - 10Base-T Cat5e UTP/STP RJ45, 8 pin
• - 100Base-TX Cat5e UTP/STP RJ45, 8 pin
• - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• Ports:
• - One RJ45 10/100/1000 Mbps input port
• - Four RJ45 10/100/1000 Mbps PoE output ports
• MAC address table: 2048 entries
• Buffer memory: 256 kB
• Backplane speed: 10 Gbps
• Switch architecture: store and forward
• Certifications: FCC Class A, CE, RoHS, UKCA, NDAA
• LEDs
• PoE
• Link/activity

PoE Pinout

• Pin 1: DC (+)
• Pin 2: DC (+)
• Pin 3: DC (-)
• Pin 6: DC (-)

Power

• Max PD output power: 30 W per port, 44 - 57 VDC
• Input power: IEEE 802.3bt/at/af compliant PSE, 90 W max., 50 - 57 VDC

Environmental

• Metal housing
• Dimensions: 130 x 86 x 29 mm (5.12 x 3.39 x 1.14 in.)
• Weight: 337 g (0.74 lbs.)
• Operating temperature: 0 - 40°C (32 - 104°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity: 20 - 85% RH, non-condensing

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
