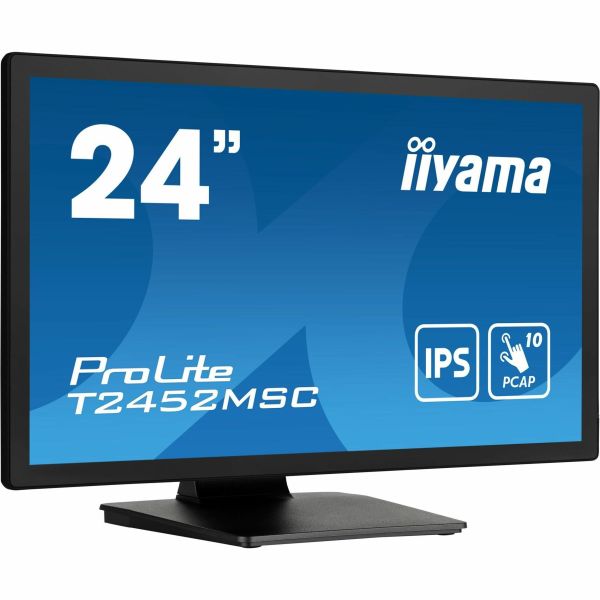

iiyama ProLite T2452MSC-B1 Digital Signage Display

Marketing Information

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

ANTI-FINGERPRINT COATING

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of t...he content displayed on the screen.

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: T2452MSCB1
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: T2452MSC-B1
Product Name: ProLite T2452MSC-B1 Digital Signage Display
Product Type: Digital Signage Display
Technical Information
Features: Edge-to-Edge Glass Design
Panel Technology: In-plane Switching (IPS) Technology
Display & Graphics
Number of Screens: 1
Screen Size: 23.8"
Display Screen Type: LCD
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Display Resolution: 1920 x 1080
Graphics Modes: Full HD
Response Time: 14 ms
Pixel Pitch: 0.27 mm
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Maximum LED Life: 5.7 Year
Video
Scan Format: 1080p
Native Contrast Ratio: 1,000:1
Brightness: 360 cd/m²
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Number of DisplayPorts: 1
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Off-Mode Power Consumption: 300 mW
Physical Characteristics
Color Family: Black
Bezel Color: Matte Black
VESA Mount Standard: 100 x 100
Height: 38.5 cm
Width: 56.7 cm
Depth: 25.4 cm
Weight (Approximate): 5.60 kg
Miscellaneous
Package Contents:

• ProLite T2452MSC-B1 Digital Signage Display
• Power Cable
• USB Cable
• HDMI Cable
• Quick Start Guide
• Safety Guide

Application/Usage:

• Retail
• POS
• School

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
