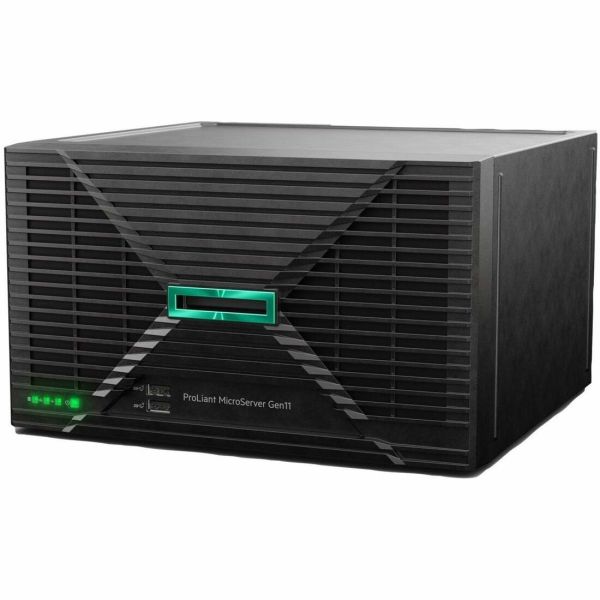

HPE ProLiant MicroServer Gen11 E-2414 2.6GHz 4-core 1P 16GB-U VROC 4LFF-NHP 180W External PS Server

Marketing Information

HPE ProLiant MicroServer Gen11 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, edge, hybrid cloud, or even workloads demanding datacenter performance. It has the ultra mini tower form factor andcan be placed flat or vertically or wall-mounted depending on the customer environment. The latest Intel Xeon® E and Pentium®supported processors deliver compute performance as well as security and remote management into the server with HPE iLOsilicon root of trust. Along with other enhancements such as 4 DIMM slots for DDR5 memory and 2 PCIe slots, whether you want ageneral-purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this sma...ll andaffordable server.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P68820-421
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: MicroServer Gen11
Product Name: ProLiant MicroServer Gen11 E-2414 2.6GHz 4-core 1P 16GB-U VROC 4LFF-NHP 180W External PS Server
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2414
Processor Core: Quad-core (4 Core)
Processor Speed: 2.80 GHz
Cache: 12 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C242
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 32 GB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Total Number of Memory Slots: 2.0
Number of Occupied Memory Slots: 1
Signal Processing: Unregistered (Unbuffered)
Controllers
Controller Type: Serial ATA
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Number of LFF Bays: 4
Hot Swappable Bays: No
Total Number of Expansion Slots: 2.0
PCI Express Details: (1) PCIe 5.0 slots, (1) PCIe 4.0 slots
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: HPE iLO 6
DisplayPort: Yes
Number of DisplayPorts: 1
Operating System
Operating System Supported:

• Windows Server 2022 Essentials
• Windows Server 2022 Standard
• Windows Server 2022 Datacenter
• Red Hat Enterprise Linux 8.8
• Red Hat Enterprise Linux 9.2
• Ubuntu 20.04 LTS
• Ubuntu 22.04 LTS

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Plug/Connector Type: C5
Maximum Power Supply Wattage: 180 W
Redundant Power Supply: No
Power Source: AC Adapter
Physical Characteristics
Form Factor: Ultra Micro Tower
Height: 153.9 mm
Width: 261.1 mm
Depth: 249.4 mm
Weight (Approximate): 8.65 kg
Miscellaneous
Package Contents:

• ProLiant MicroServer Gen10 Plus Server
• 1 x 180W External Power Adapter
• 6 ft/1.83m C5 Power Cord

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 2.0 Gen 11
• Front bezel lock feature, standard
• Padlock slot, standard
• Kensington Lock slot, standard
• Power cord clip, standard

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
