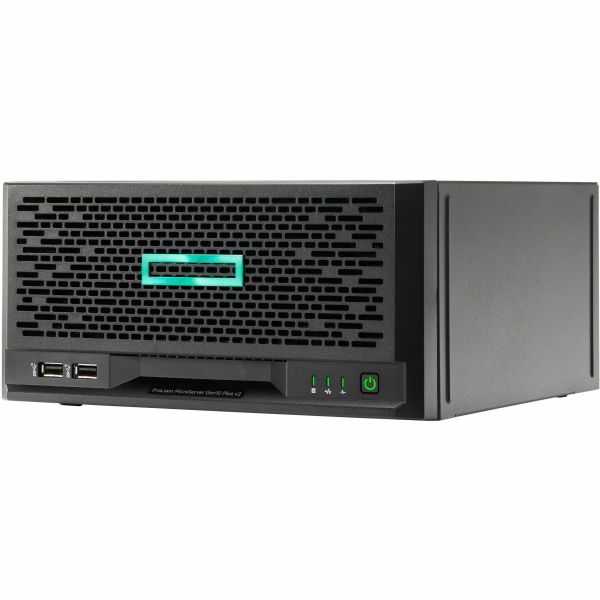

HPE ProLiant MicroServer Gen10 Plus v2 Server

Marketing Information

Are you a small office, home office, or small business with branch offices looking to build a customized solution for your office?

The HPE ProLiant MicroServer Gen10 Plus v2 server delivers an affordable compact yet powerful entry-level server that you can customize for on-premises or for hybrid cloud possibilities. It has the same compact form factor as the previous version and can be placed flat or vertically depending on your space. Intel® Xeon® E Processor and Intel® Pentium® Gold Processor Series build compute performance as well as security and remote management into the server with HPE iLO Silicon Root of Trust from HPE iLO. Along with other enhancements such as 4 x 1GbE onboard NICs and USB 3.2 Type-A Gen2, th...ere is nothing micro about the HPE ProLiant MicroServer Gen10 Plus v2 server.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P70335-425
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: MicroServer Gen10 Plus v2
Product Name: ProLiant MicroServer Gen10 Plus v2 Server
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2314
Processor Core: Quad-core (4 Core)
Processor Speed: 2.80 GHz
Cache: 8 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C252
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Error Checking: ECC
Total Number of Memory Slots: 2.0
Intel Optane Memory Ready: No
Signal Processing: Unregistered (Unbuffered)
Storage
Number of Hard Drives: 2
Total Hard Drive Capacity: 2 TB
Hard Drive Interface: Serial ATA/600
Hard Drive RPM: 7200
Hard Drive Configuration: 2 x 1TB
Controllers
Controller Type: Serial ATA
Controller Model: Intel VROC
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Number of LFF Bays: 4
Hot Swappable Bays: No
Total Number of Expansion Slots: 1
PCI Express Details: 1 standard (Low Profile) PCIe 4.0
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: HPE iLO 5
DisplayPort: Yes
Number of DisplayPorts: 1
Operating System
Operating System Supported:

• Windows Server 2019 Datacenter
• Windows Server 2019 Essentials
• Windows Server 2019 Standard
• Hyper-V
• Windows Server 2022 Datacenter
• Windows Server 2022 Essentials
• Windows Server 2022 Standard
• Red Hat Enterprise Linux 8.4

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Plug/Connector Type: C5
Maximum Power Supply Wattage: 180 W
Redundant Power Supply: No
Power Source: AC Adapter
Physical Characteristics
Form Factor: Ultra Micro Tower
Height: 118.9 mm
Width: 245.1 mm
Depth: 245.1 mm
Weight (Approximate): 7.50 kg
Miscellaneous
Package Contents:

• ProLiant MicroServer Gen10 Plus v2 Server
• AC Adapter

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 2.0 option
• Front bezel lock feature, standard
• Padlock slot, standard
• Kensington Lock slot, standard
• Power cord clip, standard

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Server Warranty includes 1-Year Parts, 1-Year Labor, and 1-Year Onsite support with next business day response.
