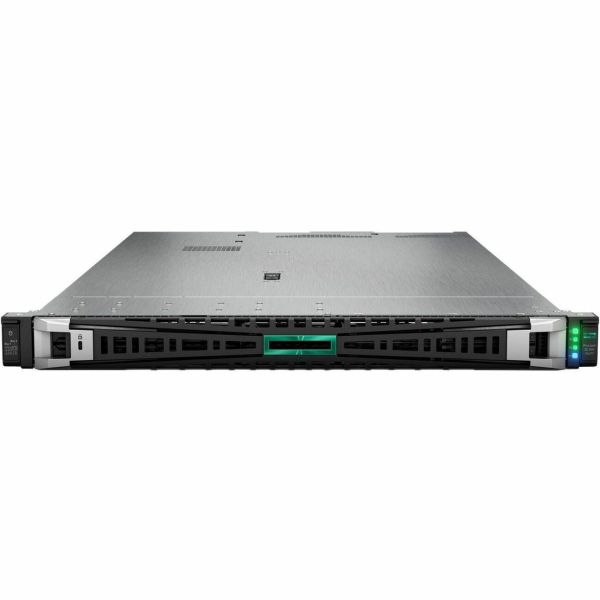

HPE ProLiant DL360 Gen11 Server

Marketing Information

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen11 supports the 4th Generation Intel® Xeon® Scalable Processors with up to 60 cores, plus 4800 MT/s HPE DDR5 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the dual-socket segmen...t, the HPE ProLiant DL360 Gen11 complements Gen10 Plus reach by delivering premium compute, memory, networking communication, discrete graphic, I/O, and security capabilities for customers focused on performance at any cost. DL360 Gen11 server is an execellent choice of daily business and workloads in General Compute, Database Management, Virtual Desktop Infrastructure, Content Delivery Network, Edge Acceleration and Intelligent Video Analytics

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P51931421
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: DL360 Gen11
Product Name: ProLiant DL360 Gen11 Server
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Gold
Processor Generation: 4th Gen
Processor Model: 5416S
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2 GHz
Cache: 30 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C741
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 8 TB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Total Number of Memory Slots: 16.0
Number of Occupied Memory Slots: 1
Signal Processing: Registered (Buffered)
Controllers
Controller Type: Serial ATA
Controller Model: Intel VROC
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
I/O Expansions
Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2.0
PCI Express Details: 2-slots (x16 FH, x16 HH) as standard
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 5
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: HPE iLO 6
Operating System
Operating System Supported:

• Windows Server
• Red Hat Enterprise Linux
• SuSE Linux Enterprise Server
• Ubuntu Server
• Oracle Linux
• Citrix XenServer

Power Description
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 800 W
Hot Swappable Power Supply: Yes
Power Source: Power Supply
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 42.9 mm
Width: 434.6 mm
Depth: 753.1 mm
Weight (Approximate): 20.44 kg
Miscellaneous
Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-3 validation (iLO 6 certification in progress)
• Common Criteria certification (iLO 6 certification in progress)
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND/User Data
• TPM 2.0 (Trusted Platform Module 2.0)

Energy Star: Yes
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

3-year parts, 3-year labor, 3-year onsite support with next business day response.
