HPE ProLiant DL360 Gen10 Plus Server

Marketing Information

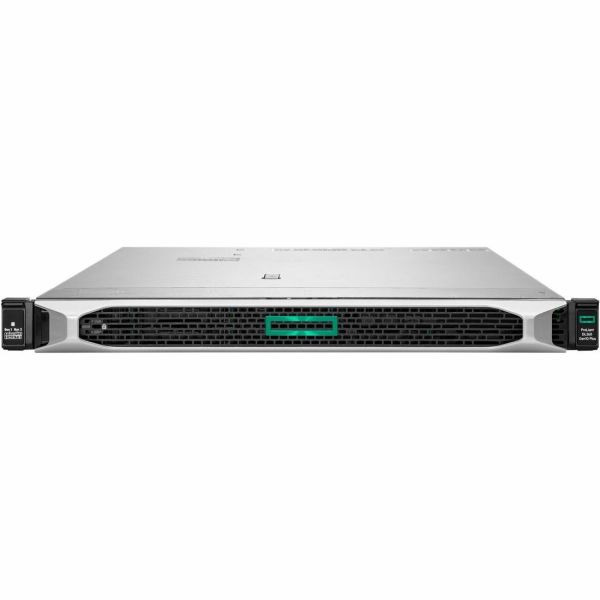

HPE ProLiant DL360 Gen10 Plus server

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 Smart Memory up to 4.0 TB per socket. Introducing PCIe... Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P77171-425
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: DL360 G10 Plus
Product Name: ProLiant DL360 Gen10 Plus Server
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Generation: 3rd Gen
Processor Model: 4309Y
Processor Core: Octa-core (8 Core)
Processor Speed: 2.80 GHz
Cache: 12 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C621A
Memory
Standard Memory: 64 GB
Maximum Memory Supported: 8 TB
Memory Technology: DDR4 SDRAM
Error Checking: ECC
Number of Occupied Memory Slots: 2
Intel Optane Memory Ready: Yes
Signal Processing: Registered (Buffered)
Storage
Number of Hard Drives: 2
Total Hard Drive Capacity: 4.80 TB
Hard Drive Interface: 12Gb/s SAS
Hard Drive RPM: 10000
Hard Drive Configuration: 2 x 2.4TB
Controllers
Controller Type:

• 24Gb/s SAS
• NVMe

Controller Model: SR416i-a
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2
PCI Express Details: 2 PCIe: 1 x16 FH, 1 x16 LP
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 5
Number of USB 3.0 Ports: 5
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: HPE iLO 5
Operating System
Operating System Supported:

• Windows Server 2019 Essentials
• Windows Server 2019 Standard
• Windows Server 2019 Datacenter
• Windows Server 2016 Essential
• Windows Server 2016 Standard
• Windows Server 2016 Datacenter
• Hyper-V
• Oracle Linux
• Oracle Linux 7.9
• Oracle Linux 8.2
• Windows Server 2022 Standard
• Windows Server 2022 Essentials
• Windows Server 2022 Datacenter
• Red Hat Enterprise Linux 7.9
• Red Hat Enterprise Linux 8.2
• SUSE Linux Enterprise Server 12 SP1
• SUSE Linux Enterprise Server 15 SP2
• Ubuntu 20.04 LTS x64

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 800 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes
Power Source: Power Supply
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 42.9 mm
Width: 434.6 mm
Depth: 741.9 mm
Weight (Approximate): 18.11 kg
Miscellaneous
Package Contents:

• ProLiant DL360 Gen10 Plus Server
• 1U SFF Easy Install Rail Kit
• 6-Foot IEC C-13/C-14 Jumper Cord

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised FW
• Ability to rollback firmware
• Secure erase of NAND
• TPM (Trusted Platform Module)
• Bezel Locking Kit

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
