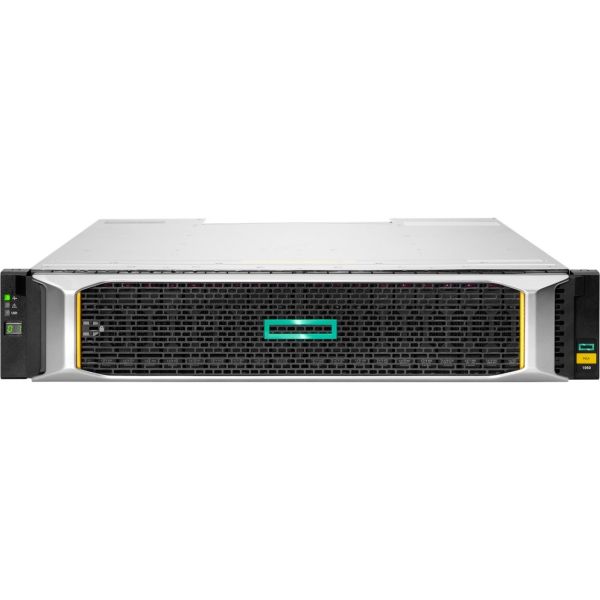

HPE MSA 1060 12Gb SAS SFF Storage

Marketing Information

Key Features | Accelerate Applications Affordably

The HPE MSA 1060 Storage is capable of delivering over 150,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments.

The MSA 1060 platform delivers allows users to define and deploy hybrid or flash configurations from day one and grow as needs change.

MSA's 'Set and Forget' Data Services does not Require a Dedicated Storage Administrator to Manage

The HPE MSA 1060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the MSA 1060's new Storage Management Utility intuitive and easy to navigate.

HPE MSA's automated tiering engine dynamically r...esponds to workload changes so you don't have to, insuring the hottest data will be moved to the fastest media automatically and in real-time.

Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster

The HPE MSA 1060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.

Remote replication via Fibre Channel (FC) or iSCSI facilitates affordable disaster recovery solution.

Flexible, Modular Architecture that Facilitates Growth into the Future

The HPE MSA1060 Storage solution supports a combination of 3.5 inch (LFF) and 2.5 inch (SFF) 2060 expansion enclosures to a maximum of 3 (4 total including the 1060 array) enclosures.

Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs or Midline SAS HDDs.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R0Q87B
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Series: 1000
Product Model: 1060
Product Name: MSA 1060 12Gb SAS SFF Storage
Product Type: NAS Storage System
Storage
Number of Hard Drives Supported: 24
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 24
Number of Solid State Drive Installed: 0
Clustering Supported: Yes
I/O Expansions
Number of Total Expansion Bays: 24
Number of 2.5" Bays: 24
Controllers
Number of Controllers: 2
Controller Type: 12Gb/s SAS
Interfaces/Ports
Host Interface: 12Gb/s SAS
Number of SAS Ports (External): 4
Physical Characteristics
Height: 88.9 mm
Width: 444.5 mm
Depth: 508 mm
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 5 kg
Warranty
Additional Warranty Information:

Three-year limited warranty, parts exchange next business day delivery.
