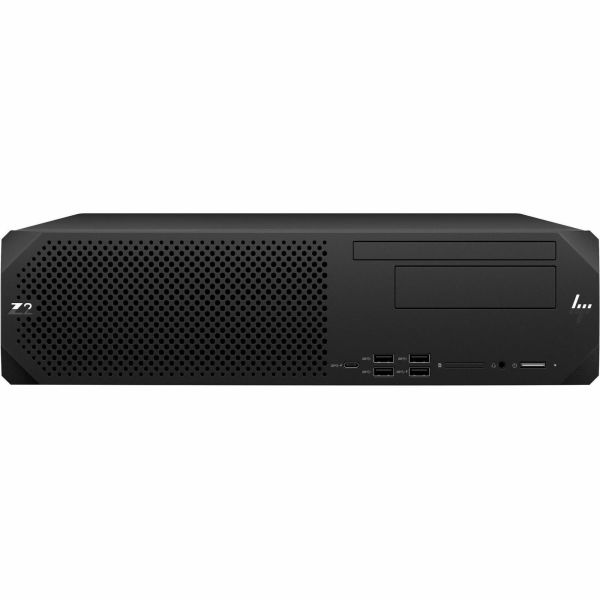

HP Z2 Small Form Factor G9 Workstation

Marketing Information

Overview | Full size Z tower power at half the size

Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.

Full height, full length performance

Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.

Configurable for today. Expandable for tomorrow.

Accele...rate your current workflow with options across processor, graphics, memory, storage, and I/O ports.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Core™ i7 processor

Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Smaller, Functional Design

The stunning new design features front and rear ledges, so you can easily move your system from location to location.

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Thermal Management

Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.

Specifications
Manufacturer: HP Inc.
Manufacturer Part Number: 996Y3ET#ABU
Manufacturer Website Address: http://www.hp.com
Brand Name: HP
Product Series: Z2 G9
Product Name: Z2 Small Form Factor G9 Workstation
Product Type: Workstation
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Core i7
Processor Generation: 14th Gen
Processor Model: i7-14700
Processor Core: Icosa-core (20 Core)
Processor Speed: 2.10 GHz
L3 Cache: 33 MB
Processor Socket: Socket LGA-1700
Processor Threads: 28
Chipset
Chipset Manufacturer: Intel
Chipset Model: W680
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Error Checking: Non-ECC
Memory Clock Speed: 4.80 GHz
Memory Configuration: 1 x 16GB
Signal Processing: Unbuffered
Storage
Drive Type: SSD
Total Solid State Drive Capacity: 1 TB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
Controllers
Controller Type:

• Serial ATA/600
• NVMe

RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Model: T400
Graphics Memory Capacity: 4 GB
Graphics Memory Accessibility: Dedicated
Maximum Memory Bandwidth: 80 GB/s
I/O Expansions
Number of External 3.5" Bays: 1
Number of Internal 3.5" Bays: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 12
USB Type-C: Yes
USB Type-C Detail: 1 x SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge)
DisplayPort: Yes
Mini DisplayPort: Yes
Number of Mini DisplayPort: 3
Number Of Ethernet Ports: 1
Number of DisplayPort Outputs: 2
Optional Ports:

Details regarding optional ports aggregated from the information available for this product's family/series.

• Flex I/O module: choose one from the following: (1) DisplayPort 1.4, (1) HDMI 2.0b, (1) VGA, 1 Dual USB-A 5Gbps, 1 USB-C® 10Gbps (Power Delivery 15W, Alt Mode DisplayPort), (1) 2nd 1GbE LAN, (1) 1Gbps Fiber LC LAN, (1) Thunderbolt 3 with USB4 Type-C® 40Gbps port (cabled to PCIe AIC)
• 2nd serial port.

Operating System
Operating System Platform: Windows
Operating System: Windows 11 Pro
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Power Supply Wattage: 450 W
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
Color Family: Black
Product Color: Black
Cooler Type: Fan Cooler
Form Factor: Small Form Factor
Height: 100 mm
Width: 384 mm
Depth: 308 mm
Weight (Approximate): 5 kg
Miscellaneous
Package Contents:

• Z2 Small Form Factor G9 Workstation
• HP USB 320K Keyboard
• HP Wired 320M Mouse

Energy Star: Yes
TCO Certified: Yes
Environmental Certification: China Environmental United Certification Center (CEC)
Energy Efficiency Certification: China Energy Conservation Program (CECP)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

3 Year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair.
