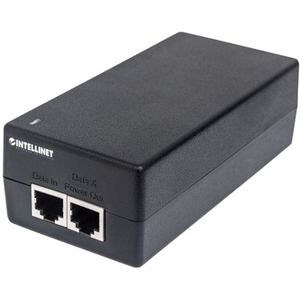

main product photo
1062386732

Intellinet Gigabit Ultra PoE Injector

£57.01
Limited Stock: Only 0 available
Intellinet Gigabit Ultra PoE Injector
Category: Power Injectors|Splitters
Product Type PoE Injector
Input Voltage 120 V AC/230 V AC
Brand Name Intellinet
Output Ports 1 x 10/100/1000Base-T
Maximum Output Power 60 W
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon
Ethics - Alert Rating Coming Soon

Description

Marketing Information

60 Watts of Power for the Internet of things (IoT)!

The Intellinet Network Solutions Gigabit High-Power PoE Injector provides up to 60 W using all four pairs of twisted-pair Cat5 or Cat6 cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. Ultra PoE standard is an excellent solution for bringing power to these important, critical systems. As many new powered devices enter the market, you'll be ready for them with an Intellinet Network Solutions Gigabit High-Power PoE Injector.

... Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices

The Intellinet Network Solutions Gigabit High-Power PoE Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.

Reduced Wiring Costs

It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Protect Your Equipment

Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.

Wall-mount option

For full installation flexibility, you can mount the injector on the wall through four built-in fixing points on the back panel.


Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 561235UK
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 561235
Product Name: Gigabit Ultra PoE Injector
Packaged Quantity: 1 Piece
Product Type: PoE Injector
Technical Information
Protection Type:
  • Over Current
  • Short Circuit
  • Overload Protection

Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC

Maximum Output Voltage: 52 V DC
Maximum Output Current: 1.15 A
Minimum Frequency: 50 Hz
Maximum Frequency: 60 Hz
Maximum Output Power: 60 W
Interfaces/Ports
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-T
Physical Characteristics
Height: 40 mm
Width: 62 mm
Depth: 146 mm
Weight (Approximate): 220 g
Miscellaneous
Package Contents:
  • Gigabit Ultra PoE Injector
  • Power Cable
  • Instruction

Additional Information:
  • PoE Pinout
    • - Pin 1: DC (-) - Pin 2: DC (-) - Pin 3: DC (+) - Pin 4: DC (+) - Pin 5: DC (+) - Pin 6: DC (+) - Pin 7: DC (-) - Pin 8: DC (-)
  • LED
    • Dual-color power and PoE LED
  • Environmental
    • Plastic housing
    • Operating temperature: 0 - 40°C (32 - 104°F)
    • Operating humidity: 10 - 90% RH, non-condensing
    • Storage temperature: -20 - 80°C (-4 - 176°F)

Certifications & Standards:
  • IEEE 802.3af (Power over Ethernet)
  • IEEE 802.3at (High-Power PoE+ Power over Ethernet)
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Gigabit Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • FCC Class A
  • CE

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
