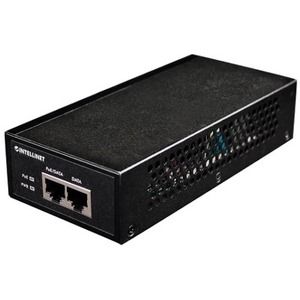

Intellinet Gigabit High-Power PoE+ Injector

Marketing Information

Reduce costs by using existing network cable to provide both power and data

The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices.

Reduce Wiring Costs

No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as we...ll as transfer data.

Protect Your Equipment

Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 560566UK
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 560566
Product Name: Gigabit High-Power PoE+ Injector
Product Type: PoE Injector
Technical Information
Protection Type:

• Overload Protection
• Short Circuit
• Over Voltage

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Minimum Frequency: 50 Hz
Maximum Frequency: 60 Hz
Maximum Output Power: 30 W
Interfaces/Ports
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-T
Physical Characteristics
Height: 35 mm
Width: 72 mm
Length: 154 mm
Weight (Approximate): 790 g
Miscellaneous
Package Contents:

• Gigabit High-Power PoE+ Injector
• Power Cable
• Installation Material (2 screws and drywall anchors)
• Instructions

Compatibility:

Intellinet Wireless Access Products:

• Wireless 300N Access Points (524735, 524711, 525251)
• IEEE 802.3at PoE+ Splitter (560443)
• Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR, 551229 NFD130-IR, 551236 NFD130-IRV)

Certifications & Standards:

Standards:

• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)

Certifications:

• FCC Class B Part 15, CE 89/336/EEC

Warranty
Limited Warranty: 3 Year
