Fujitsu PRIMERGY TX1320 M5 Server
£762.22
Out Of Stock - Contact us for availability

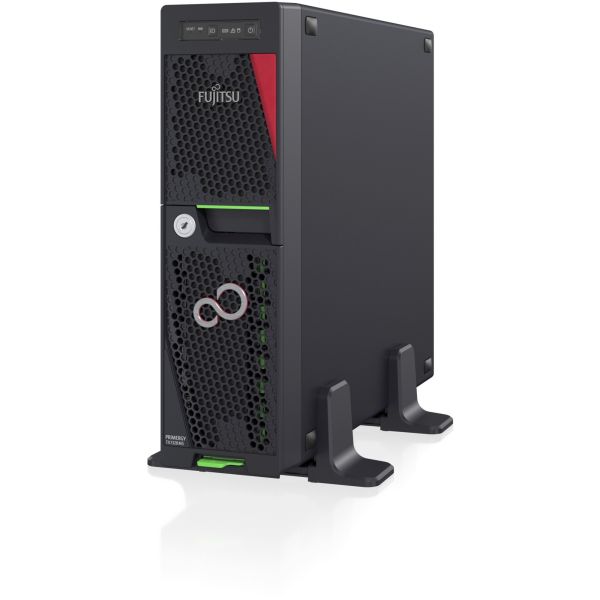

Fujitsu PRIMERGY TX1320 M5 Server
Category: Servers
| Optical Drive Type | No |
|---|---|
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Total Number of Memory Slots | 4.0 |
| Product Type | Server |
| Maximum Memory Supported | 128 GB |
| Standard Memory | 16 GB |
| Operating System | No |
| Chipset | Intel C256 |
| Form Factor | Tower |
| Processor Speed | 3.40 GHz |
| Processor Type | Xeon |
| RAID Levels | 0, 1, 10 |
| Controller Type | Serial ATA/Serial Attached SCSI (SAS) |
| Brand Name | Fujitsu |
| Memory Technology | DDR4 SDRAM |
| Processor Model | E-2334 |
| Processor Core | Quad-core (4 Core) |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| VGA | Yes |
| Maximum Power Supply Wattage | 500 W |
| DisplayPort | Yes |
| Product Family | PRIMERGY TX1320 M5 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
Description
Marketing Information
Fujitsu Server PRIMERGY TX1320 M5 Tower Server | Ultra-compact advanced technology server to accelerate your business
Fujitsu offers a fantastic blend of systems, solutions and expertise to guarantee maximum productivity, efficiency and flexibility, delivering confidence and reliability. Fujitsu Server PRIMERGY systems deliver workload-optimized x86 industry standard servers for any workload and business demand. Since there is no single server solution to meet all these needs, Fujitsu offers a broad server portfolio consisting of expandable tower servers for remote and branch offices, versatile rack-mount servers and densityoptimized multi-node servers. Whatever the size of your business - large enterprise with multiple site...s, or a small or medium-sized company with limited space and budget - with the right choice of server, your IT can become the business enabler you have always wanted it to be.
PRIMERGY TX1320 M5
The unique ultra-compact Fujitsu Server PRIMERGY TX1320 M5 has advanced technology ideal for most industry verticals, small and medium-sized enterprises (SME), spaceconstrained environments, retail premises or branch offices. The performance-oriented yet costeffective mono-socket design supports the latest Intel® Xeon® E-2300 product family processors, an affordable Pentium® processor option plus up to 128 GB RAM at 3,200 MT/s to boost performance for appropriately sized standard business workloads, including virtualized ones (such as: file/print, email, ERP/CRM, messaging, centralized data storage) and industry specific applications. Institutions with special legal requirements such as medical, governmental, legal, or financial offices can benefit from the server's secure and robust storage and transmission features. These include up to eight high quality 2.5-inch storage devices (including up to four ultra-fast PCIe SSDs for demanding applications), powerful RAID controllers, graphics and networking options enabled by 4 PCIe expansion slots (Gen 4/3) together with versatile and affordable backup plus TPM 2.0 capability. High efficiency (94%), 500W redundant power supplies enhance reliability and protect customer investment. This ultra-compact, silent server with a new dust protection kit and Advanced Thermal Design Technology is designed for deployment flexibility - it can be deployed in offices, on rack shelves, industrial areas and even on desks at temperatures from 5 °C to 45 °C. New generation technologies include M.2 modules for efficient OS installation along with dual microSD capability for VMware ESXi, plus the latest USB 3.2 Gen 2 ports. Furthermore, the TX1320 M5 server features the iRMC S6 and the Fujitsu Infrastructure Manager (ISM) suite, which enable remote server management and centralized IT infrastructure control respectively, hence boosting IT administrator productivity.
Specifications
Manufacturer: Fujitsu
Manufacturer Part Number: VFY:T1325SC051IN
Manufacturer Website Address: http://uk.fujitsu.com
Brand Name: Fujitsu
Product Line: PRIMERGY
Product Series: TX1320 M5
Product Name: PRIMERGY TX1320 M5 Server
Packaged Quantity: 1
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2334
Processor Core: Quad-core (4 Core)
Processor Speed: 3.40 GHz
Cache: 8 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C256
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Clock Speed: 3.20 GHz
Error Checking: ECC
Total Number of Memory Slots: 4.0
Number of Occupied Memory Slots: 1
Signal Processing: Unregistered (Unbuffered)
Storage
Optical Drive Type: No
Controllers
Controller Type:
RAID Supported: Yes
RAID Levels: 0, 1, 10
I/O Expansions
Number of Total Expansion Bays: 5
Number of External 5.25" Bays: 1
Number of Internal 2.5" Bays: 4
Number of SFF Bays: 4
Total Number of Expansion Slots: 4.0
PCI Express x4 (Gen 3.x) Slots: 2
PCI Express Details: 2 x PCI-Express 4.0 x8, 2 x PCI-Express 3.0 x4
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: iRMC S6
DisplayPort: Yes
Number of DisplayPorts: 1
Operating System
Operating System Supported:
Operating System: No
Power Description
Input Voltage:
Maximum Power Supply Wattage: 500 W
Power Source: Power Supply
Physical Characteristics
Form Factor: Tower
Height: 340 mm
Width: 98 mm
Depth: 400 mm
Weight (Approximate): 11.10 kg
Miscellaneous
Environmental Compliance:
Fujitsu Server PRIMERGY TX1320 M5 Tower Server | Ultra-compact advanced technology server to accelerate your business
Fujitsu offers a fantastic blend of systems, solutions and expertise to guarantee maximum productivity, efficiency and flexibility, delivering confidence and reliability. Fujitsu Server PRIMERGY systems deliver workload-optimized x86 industry standard servers for any workload and business demand. Since there is no single server solution to meet all these needs, Fujitsu offers a broad server portfolio consisting of expandable tower servers for remote and branch offices, versatile rack-mount servers and densityoptimized multi-node servers. Whatever the size of your business - large enterprise with multiple site...s, or a small or medium-sized company with limited space and budget - with the right choice of server, your IT can become the business enabler you have always wanted it to be.
PRIMERGY TX1320 M5
The unique ultra-compact Fujitsu Server PRIMERGY TX1320 M5 has advanced technology ideal for most industry verticals, small and medium-sized enterprises (SME), spaceconstrained environments, retail premises or branch offices. The performance-oriented yet costeffective mono-socket design supports the latest Intel® Xeon® E-2300 product family processors, an affordable Pentium® processor option plus up to 128 GB RAM at 3,200 MT/s to boost performance for appropriately sized standard business workloads, including virtualized ones (such as: file/print, email, ERP/CRM, messaging, centralized data storage) and industry specific applications. Institutions with special legal requirements such as medical, governmental, legal, or financial offices can benefit from the server's secure and robust storage and transmission features. These include up to eight high quality 2.5-inch storage devices (including up to four ultra-fast PCIe SSDs for demanding applications), powerful RAID controllers, graphics and networking options enabled by 4 PCIe expansion slots (Gen 4/3) together with versatile and affordable backup plus TPM 2.0 capability. High efficiency (94%), 500W redundant power supplies enhance reliability and protect customer investment. This ultra-compact, silent server with a new dust protection kit and Advanced Thermal Design Technology is designed for deployment flexibility - it can be deployed in offices, on rack shelves, industrial areas and even on desks at temperatures from 5 °C to 45 °C. New generation technologies include M.2 modules for efficient OS installation along with dual microSD capability for VMware ESXi, plus the latest USB 3.2 Gen 2 ports. Furthermore, the TX1320 M5 server features the iRMC S6 and the Fujitsu Infrastructure Manager (ISM) suite, which enable remote server management and centralized IT infrastructure control respectively, hence boosting IT administrator productivity.
Specifications
Manufacturer: Fujitsu
Manufacturer Part Number: VFY:T1325SC051IN
Manufacturer Website Address: http://uk.fujitsu.com
Brand Name: Fujitsu
Product Line: PRIMERGY
Product Series: TX1320 M5
Product Name: PRIMERGY TX1320 M5 Server
Packaged Quantity: 1
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: E-2334
Processor Core: Quad-core (4 Core)
Processor Speed: 3.40 GHz
Cache: 8 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C256
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Clock Speed: 3.20 GHz
Error Checking: ECC
Total Number of Memory Slots: 4.0
Number of Occupied Memory Slots: 1
Signal Processing: Unregistered (Unbuffered)
Storage
Optical Drive Type: No
Controllers
Controller Type:
- Serial ATA
- Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 10
I/O Expansions
Number of Total Expansion Bays: 5
Number of External 5.25" Bays: 1
Number of Internal 2.5" Bays: 4
Number of SFF Bays: 4
Total Number of Expansion Slots: 4.0
PCI Express x4 (Gen 3.x) Slots: 2
PCI Express Details: 2 x PCI-Express 4.0 x8, 2 x PCI-Express 3.0 x4
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Number of VGA Ports: 1
Remote Management: Yes
Remote Management Controller: iRMC S6
DisplayPort: Yes
Number of DisplayPorts: 1
Operating System
Operating System Supported:
- Windows Server 2022 Datacenter
- Windows Server 2022 Standard
- Windows Server 2022 Essentials
- Windows Server 2019 Datacenter
- Windows Server 2019 Standard
- Windows Server 2019 Essentials
- Red Hat Enterprise Linux 8
- SuSE Linux Enterprise Server 15
Operating System: No
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Power Supply Wattage: 500 W
Power Source: Power Supply
Physical Characteristics
Form Factor: Tower
Height: 340 mm
Width: 98 mm
Depth: 400 mm
Weight (Approximate): 11.10 kg
Miscellaneous
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
