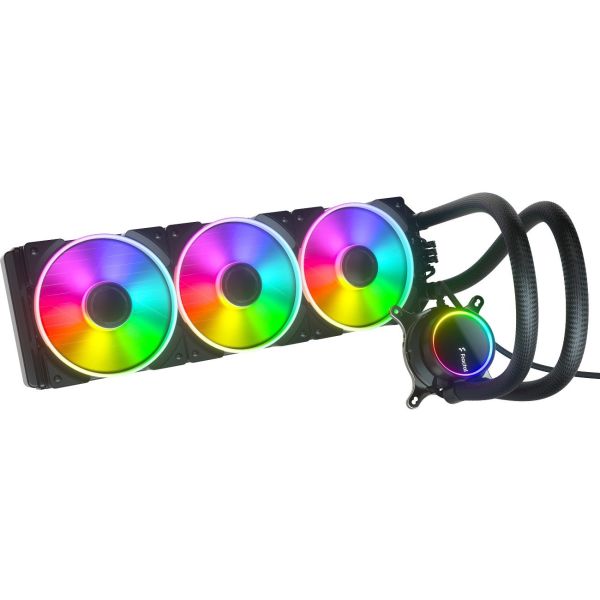

Fractal Design Celsius+ Prisma S36 Cooling Fan/Radiator/Pump

Marketing Information

Cool, quiet and colorful

The brilliance of prisma

• Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects

• Specially designed fan blades and outer ring produce a uniform glow

• Optimized fan geometry balances airflow with extra emphasis on static pressure

• Trip Wire technology reduces blade turbulence

• LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan

Get the balance right

Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance - and a simple twist of the pump face changes to PWM mode for full us...er control

Tidier through technology

ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation

Forget the thermal paste

With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation

Color-coordinated cooling

Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support

Mounting made easy

Supports the most common sockets for both Intel and AMD

Up our sleeves

Braided tube sleeves readily contain both the fan control cables and ARGB wires

Specifications
Manufacturer: Fractal Design
Manufacturer Part Number: FD-W-2-S3602
Manufacturer Website Address: http://www.fractal-design.com
Brand Name: Fractal Design
Product Line: Celsius+
Product Series: S36
Product Name: Celsius+ Prisma S36 Cooling Fan/Radiator/Pump
Product Type: Cooling Fan/Radiator/Pump
Fan Information
Number of Fans: 3
Fan Bearing Type: LLS Bearing
Fan Speed (Max): 2000 rpm
Maximum Airflow: 145.62m³/h
Noise Levels (A-Weighted): 32.7 dB(A)
Fan Life: 11.4 Year
LED Color: ARGB
Heatsink Information
Cooler Type: Liquid Cooler
Compatible Intel Socket:

• LGA-1200
• H3 LGA-1150
• H4 LGA-1151
• H2 LGA-1155
• H LGA-1156
• B LGA-1366
• LGA 2011-v3
• R LGA-2011
• R4 LGA-2066

Compatible AMD Socket:

• AM2 PGA-940
• AM2+ PGA-940
• AM3 PGA-941
• AM3+
• AM4
• FM1
• FM2+
• FM2
• TR4

Physical Characteristics
Radiator Material: Aluminium
Maximum Fan Diameter: 120 mm
Radiator Height: 30 mm
Radiator Width: 123 mm
Radiator Depth: 403 mm
Miscellaneous
Compatibility: Fractal Design Computer Cases:

• Define 7 XL Dark Tempered Glass
• Define S2 Vision RGB
• Define S2 Tempered Glass

Application/Usage:

• Processor
• Computer Case
