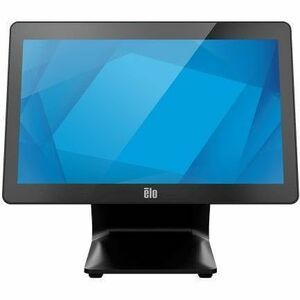

Elo I-Series 3 POS Terminal

Marketing Information

Modular design.Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect

Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.

Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro™ and the Windows 1...0 operating system, the I-Series 3 deliversthe dependability businesses need.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E706223
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Line: I-Series 3
Product Name: I-Series 3 POS Terminal
Product Type: POS Terminal
Technical Information
Cooling Fan: Fanless
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Form Factor: All-in-One
Features:

• Edge-to-Edge Glass Design
• Anti-glare

Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Core i5
Processor Speed: 4.40 GHz
Processor Model: i5-1245UL
Memory
Standard Memory: 8 GB
Memory Technology: DDR5 SDRAM
Storage
Solid State Drive Capacity: 128 GB
Solid State Drive Interface: M.2
Display & Graphics
Screen Size: 39.6 cm (15.6")
Active Display Size (Horizontal): 344.17 mm
Active Display Size (Vertical): 193.55 mm
Display Screen Type: LED
Screen Mode: Full HD
Touchscreen: Yes
Touchscreen Technology: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touch Points: 10
Aspect Ratio: 16:9
Contrast Ratio: 1,000:1
Response Time: 25 ms
Colour Supported: 16.2 Million Colours
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Graphics Controller Manufacturer: Intel
Graphics Controller Model: UHD Graphics
Network & Communication
Wireless LAN: Yes
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
USB: Yes
Powered USB: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Cash Drawer Port: Yes
Serial Port: Yes
RJ-50: Yes
Number of Micro USB 2.0 Ports: 4
Number of USB 3.0 Ports: 4
Number of USB Type C Ports: 1
Built-in Devices
Number of Speakers: 2
Speaker Power: 2 W
Software
Operating System: Windows 10 IoT Enterprise LTSC (64-bit)
Power Description
Power Source:

• AC Power
• DC Power

Physical Characteristics
Color Family: Black
Product Color: Black
Weight (Approximate): 6.40 kg
Miscellaneous
Package Contents:

• I-Series 3 POS Terminal
• Stand

Ingress Protection (IP) Rating: IP54
Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
