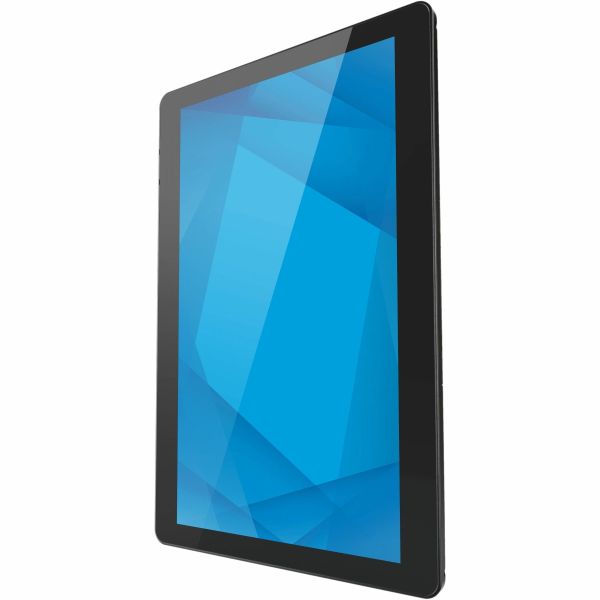

Elo I-Series 3 POS Terminal

Marketing Information

Modular design. Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect

Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, securityand performance.

Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro and the Windows 10 opera...ting system, the I-Series 3 deliversthe dependability businesses need.

Enhanced connectivity for all your accessories.

• USB-C full featured
• Gigabit LAN
• Powered RJ50 Serial
• 4x USB 3.0
• 4x Micro-USB Edge Connect
• WiFi & Bluetooth 5.2

Supportfor Linux.

For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

EloBridge the gap between Windows and Android.

Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.

Get peace of mindwith EloCare.

• Advance Unit Replacement
• Extended Warranty
• Professional Services

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E607709
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Line: I-Series 3
Product Name: I-Series 3 POS Terminal
Product Type: POS Terminal
Technical Information
Cooling Fan: Fanless
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Form Factor: All-in-One
Features: Edge-to-Edge Glass Design
Processor & Chipset
Processor Type: Core i5
Processor Speed: 4.40 GHz
Processor Model: i5-1245UL
Processor Cache: 12 MB
Memory
Standard Memory: 8 GB
Memory Technology: DDR5 SDRAM
Storage
Flash Memory Capacity: 128 GB
Solid State Drive Capacity: 256 GB
Solid State Drive Interface: M.2
Display & Graphics
Screen Size: 54.6 cm (21.5")
Active Display Size (Horizontal): 476 mm
Active Display Size (Vertical): 267.72 mm
Display Screen Type: LED
Panel Technology: In-plane Switching Technology (IPS)
Touchscreen: Yes
Touchscreen Technology: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touch Points: 10
Aspect Ratio: 16:9
Contrast Ratio: 1,000:1
Response Time: 25 ms
Colour Supported: 16.7 Million Colours
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Graphics Controller Model: Xe Graphics
Network & Communication
Wireless LAN: Yes
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
USB: Yes
Powered USB: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Serial Port: Yes
RJ-50: Yes
Number of Micro USB 2.0 Ports: 4
Number of USB 3.0 Ports: 4
Number of USB Type C Ports: 1
Built-in Devices
Number of Speakers: 2
Speaker Power: 2 W
Software
Operating System: Windows 10
Power Description
Power Source:

• AC Power
• DC Power

Physical Characteristics
Color Family: Black
Product Color: Black
Weight (Approximate): 6.12 kg
Miscellaneous
Package Contents:

• I-Series 3 POS Terminal
• European Power Cord
• Power Adapter - 180W
• Cable RJ-50 to DB-9
• Quick Installation Guide (QIG)
• Cable tie
• VESA mounting screw

Ingress Protection (IP) Rating: IP54
Energy Star: Yes
