Elo Status Light

Marketing Information

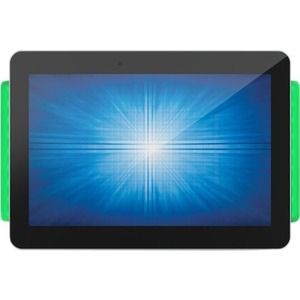

The Elo Status Lights provide a sleek, low profile solution for highlighting conference room availability and self-checkout (SCO) lane readiness. The Elo Edge Connect Status Lights connect easily via a Micro USB port or GPIO to the side of the I-Series 2.0 and 3.0 for Android in either portrait or landscape - creating an integrated design while delivering the flexibility you need. The lights appear white when not activated and can light up red or green depending on the need or use. Elo provides a set of APIs through the EloView® SDK allowing you to control the status light via your own APIs.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E651272
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Name: Status Light
Packaged Quantity: 1
Product Type: Call Alert/Presence Indicator
Technical Information
Connectivity Technology: Wired
Alarm Type: Visual
Light Color:

• Green
• Red

Power Description
Input Voltage: 5 V
Physical Characteristics
Color Family: Black
Product Color: Black
Application/Usage: Conference Room
Height: 25.9 mm
Width: 119.9 mm
Depth: 19.1 mm
Weight (Approximate): 40.8 g
Miscellaneous
Compatibility: Elo Touch Solutions I-Series (2.0 & 3.0) for Android Value Models (10, 15) Digital Signage
Country of Origin: China
