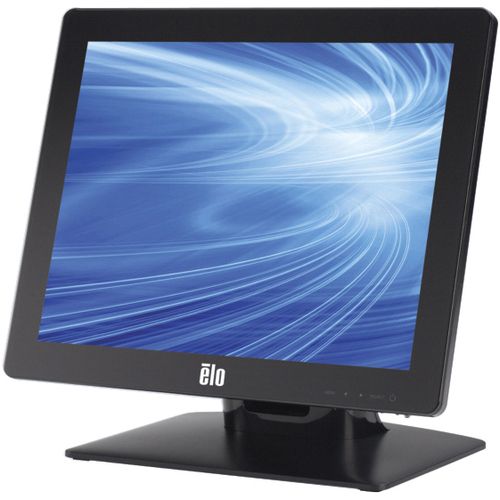

Elo 1717L Rev A Multifunction 17-inch Desktop Touchmonitor

Marketing Information

The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-be...zel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E179069
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1717L
Product Name: 1717L Rev A Multifunction 17-inch Desktop Touchmonitor
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 17"
Viewable Screen Size: 43.2 cm (17")
Screen Mode: SXGA
Response Time: 30 ms
Aspect Ratio: 5:4
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Adjustable Display Angle: Yes
Mount Type: Desk Mountable
Backlight Technology: LED
Features: Security Lock
Horizontal Frequency: 80 kHz
Video
Maximum Resolution: 1280 x 1024
Colour Supported: 16.7 Million Colours
Contrast Ratio: 800:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave
Interfaces/Ports
USB: Yes
VGA: Yes
Power Description
Operating Power Consumption: 36 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Product Color: Black
Height with Stand: 360 mm
Width with Stand: 392 mm
Depth with Stand: 191 mm
Weight (Approximate): 5.49 kg
Miscellaneous
Platform Supported: PC
