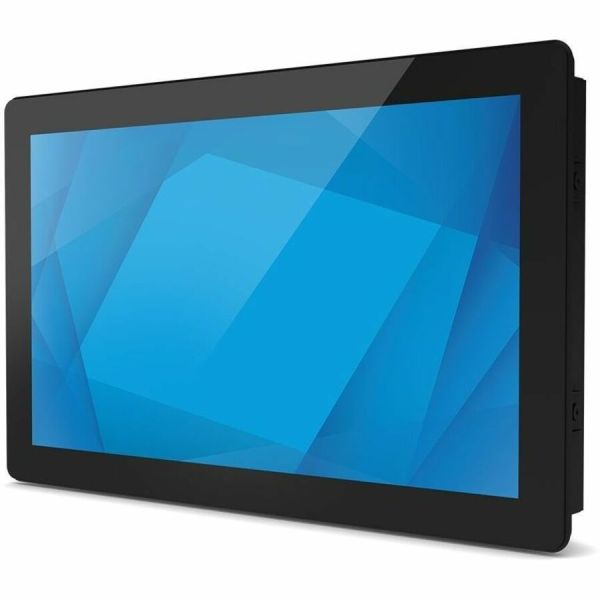

Elo 1594L 15.6" Open Frame Touchscreen

Marketing Information

1594L 15.6" Open Frame Touchscreen

The Elo 1594L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Design Your Solution with Elo | Enabling Partners to Build Smarter Kiosks...

With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install

Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass Enabled with PCAP

Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Interactive Open Frames From 10 to 55-inches | Built for Commercial Use

We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E131375
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Series: 90
Product Model: 1594L
Product Name: 1594L 15.6" Open Frame Touchscreen
Product Type: Open-frame LED Touchscreen Monitor
Technical Information
Screen Size Class: 16"
Viewable Screen Size: 39.6 cm (15.6")
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 25 ms
Response Time Details: 25ms Typical
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Rear Mount
• Flush Mount

Backlight Technology: LED
Features:

• On-screen Display (OSD)
• OSD/Power Lock

Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Impact Protection (IK) Rating: IK07
Active Display Area (H x V): 344.10 mm x 193.50 mm
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 800:1
Brightness: 350 cd/m²
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Environmental Conditions
Operating Temperature Range: 0°C to 40°C
Non-operating Temperature Range: -20°C to 60°C
Operating Humidity Range: 20% to 80% (Non-condensing)
Non-operating Humidity Range: 10% to 95% (Non-condensing)
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Color Family: Black
Product Color: Black
Height: 242 mm
Width: 394.7 mm
Depth: 43.4 mm
Weight (Approximate): 3.02 kg
