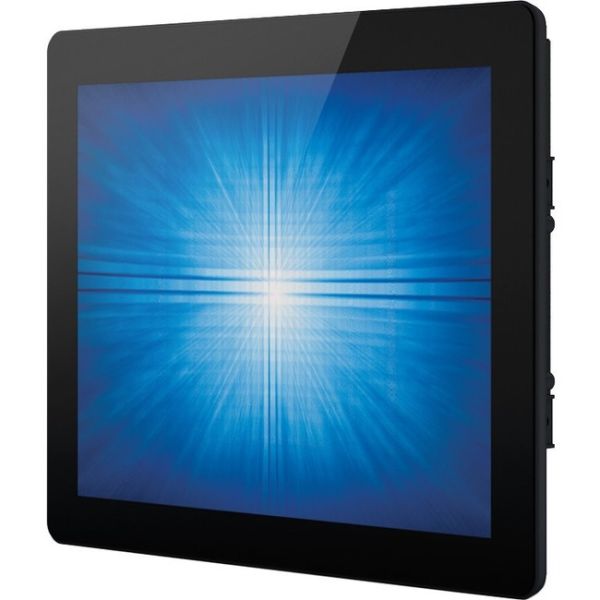

Elo 1590L 15" Open Frame Touchscreen (Rev B)

Marketing Information
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, whi...ch simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• Display Port and VGA video interfaces
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities

Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E326154
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1590L
Product Name: 1590L 15" Open Frame Touchscreen (Rev B)
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 15"
Viewable Screen Size: 38.1 cm (15")
Screen Mode: XGA
Response Time: 16 ms
Aspect Ratio: 4:3
Mount Type:

• Rack-mountable
• Front Mount

Backlight Technology: LED
Video
Maximum Resolution: 1024 x 768
Colour Supported: 16.2 Million Colours
Contrast Ratio: 700:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen Type: 5-wire Resistive
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Power Description
Operating Power Consumption: 12.50 W
Physical Characteristics
VESA Mount Compatible: Yes
Product Color: Black
Height: 264.4 mm
Width: 336.3 mm
Depth: 41.9 mm
Weight (Approximate): 2.90 kg
