1028143904

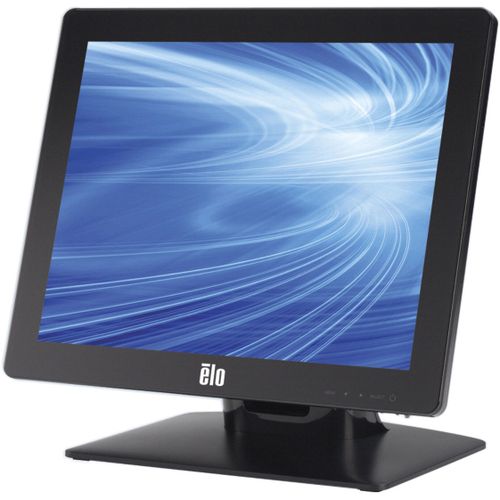

Elo 1517L Rev B 15-inch Multifunction Desktop
£426.58
Out Of Stock - Contact us for availability
Elo 1517L Rev B 15-inch Multifunction Desktop
Category: Touchscreen Monitors
| Touchscreen Type | 5-wire Resistive |
|---|---|
| Aspect Ratio | 4:3 |
| Contrast Ratio | 700:1 |
| Response Time | 16 ms |
| Limited Warranty | 3 Year |
| Brightness | 250 cd/m² |
| Colour Supported | 16.2 Million Colours |
| Mount Type | Desk Mountable/Wall Mountable/Pole Mount |
| Viewable Screen Size | 38.1 cm (15") |
| Maximum Resolution | 1024 x 768 |
| Brand Name | Elo |
| Screen Mode | XGA-2 |
| Touchscreen | Yes |
| Standard Refresh Rate | 75 Hz |
| USB | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Standby Power Consumption | 1.70 W |
| VGA | Yes |
| Off-Mode Power Consumption | 1.30 W |
| Screen Size Class | 15" |
| Product Color | Black |
| Color Family | Black |
Description
Marketing Information
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E523163
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1517L
...>Product Name: 1517L Rev B 15-inch Multifunction Desktop
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 15"
Viewable Screen Size: 38.1 cm (15")
Screen Mode: XGA-2
Screen Surface: Anti-glare
Response Time: 16 ms
Aspect Ratio: 4:3
Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 140°
Adjustable Display Angle: Yes
Mount Type:
Backlight Technology: LED
Features: Security Lock
Horizontal Frequency: 60 kHz
Video
Maximum Resolution: 1024 x 768
Standard Refresh Rate: 75 Hz
Colour Supported: 16.2 Million Colours
Contrast Ratio: 700:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: 5-wire Resistive
Interfaces/Ports
USB: Yes
VGA: Yes
Serial Port: Yes
Power Description
Input Voltage:
Operating Power Consumption: 12 W
Standby Power Consumption: 1.70 W
Off-Mode Power Consumption: 1.30 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Color Family: Black
Product Color: Black
Height with Stand: 317.50 mm
Width with Stand: 358.14 mm
Depth with Stand: 198.12 mm
Weight (Approximate): 4.30 kg
Miscellaneous
Package Contents:
Certifications & Standards:
Platform Supported: PC
Warranty
Limited Warranty: 3 Year
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E523163
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1517L
...>Product Name: 1517L Rev B 15-inch Multifunction Desktop
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size Class: 15"
Viewable Screen Size: 38.1 cm (15")
Screen Mode: XGA-2
Screen Surface: Anti-glare
Response Time: 16 ms
Aspect Ratio: 4:3
Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 140°
Adjustable Display Angle: Yes
Mount Type:
- Desk Mountable
- Wall Mountable
- Pole Mount
Backlight Technology: LED
Features: Security Lock
Horizontal Frequency: 60 kHz
Video
Maximum Resolution: 1024 x 768
Standard Refresh Rate: 75 Hz
Colour Supported: 16.2 Million Colours
Contrast Ratio: 700:1
Brightness: 250 cd/m²
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: 5-wire Resistive
Interfaces/Ports
USB: Yes
VGA: Yes
Serial Port: Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
- 12 V DC
Operating Power Consumption: 12 W
Standby Power Consumption: 1.70 W
Off-Mode Power Consumption: 1.30 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Color Family: Black
Product Color: Black
Height with Stand: 317.50 mm
Width with Stand: 358.14 mm
Depth with Stand: 198.12 mm
Weight (Approximate): 4.30 kg
Miscellaneous
Package Contents:
- 1517L Rev B 15-inch Multifunction Desktop
- Detachable Touch and Video Cables
- Power Cable
Certifications & Standards:
- C-Tick
- cUL
- IC
- CCC
- CE
- VCCI
- KCC
- e-Standby
- CoC
- BSMI
- UL
- FCC
- CB
- IMERC
- IEC 60320 C6
Platform Supported: PC
Warranty
Limited Warranty: 3 Year
