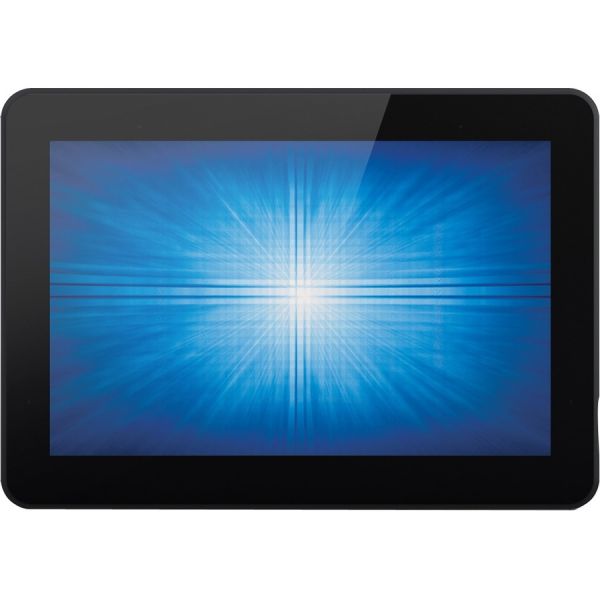

Elo 1093L 10.1" Open Frame Touchscreen (RevB)
£259.33
Out Of Stock - Contact us for availability
Elo 1093L 10.1" Open Frame Touchscreen (RevB)
Category: Touchscreen Monitors
| Touchscreen Type | TouchPro Projected Capacitive |
|---|---|
| Multi-touch Screen | Yes |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 800:1 |
| Response Time | 25 ms |
| Brightness | 350 cd/m² |
| Colour Supported | 262,000 Colors |
| Mount Type | Flush Mount |
| Viewable Screen Size | 25.7 cm (10.1") |
| Maximum Resolution | 1280 x 800 |
| Brand Name | Elo |
| Screen Mode | WXGA |
| Touchscreen | Yes |
| Standard Refresh Rate | 75 Hz |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Standby Power Consumption | 700 mW |
| VGA | Yes |
| DisplayPort | Yes |
| Off-Mode Power Consumption | 500 mW |
| Panel Technology | Thin Film Transistor (TFT) |
| Curved Screen | No |
| TAA Compliant | No |
| Screen Size Class | 10" |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/China Restriction of Hazardous Substances (China RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
Description
Marketing Information
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liq...uids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E321195
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1093L
Product Name: 1093L 10.1" Open Frame Touchscreen (RevB)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 10"
Viewable Screen Size: 25.7 cm (10.1")
Screen Mode: WXGA
Panel Technology: Thin Film Transistor (TFT)
Response Time: 25 ms
Aspect Ratio: 16:10
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Mount Type: Flush Mount
Backlight Technology: LED
Features: On-screen Display (OSD)
Horizontal Frequency: 30 kHz to 60 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Video
Maximum Resolution: 1280 x 800
Standard Refresh Rate: 75 Hz
Colour Supported: 262,000 Colors
Contrast Ratio: 800:1
Brightness: 350 cd/m²
Maximum Refresh Rate: 75 Hz
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Power Description
Input Voltage:
Operating Power Consumption: 25 W
Standby Power Consumption: 700 mW
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 10 kWh
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Product Color: Black
Height: 178.6 mm
Width: 255.8 mm
Depth: 36.8 mm
Weight (Approximate): 1.20 kg
Miscellaneous
Certifications & Standards:
Mean Time Between Failures (MTBF): 5.7 Year
TAA Compliant: No
Environmental Compliance:
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liq...uids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
Specifications
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E321195
Manufacturer Website Address: http://www.elotouch.com
Brand Name: Elo
Product Model: 1093L
Product Name: 1093L 10.1" Open Frame Touchscreen (RevB)
Packaged Quantity: 1
Product Type: Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class: 10"
Viewable Screen Size: 25.7 cm (10.1")
Screen Mode: WXGA
Panel Technology: Thin Film Transistor (TFT)
Response Time: 25 ms
Aspect Ratio: 16:10
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Mount Type: Flush Mount
Backlight Technology: LED
Features: On-screen Display (OSD)
Horizontal Frequency: 30 kHz to 60 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Video
Maximum Resolution: 1280 x 800
Standard Refresh Rate: 75 Hz
Colour Supported: 262,000 Colors
Contrast Ratio: 800:1
Brightness: 350 cd/m²
Maximum Refresh Rate: 75 Hz
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Power Description
Input Voltage:
- 12 V DC
- 230 V AC
Operating Power Consumption: 25 W
Standby Power Consumption: 700 mW
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 10 kWh
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Product Color: Black
Height: 178.6 mm
Width: 255.8 mm
Depth: 36.8 mm
Weight (Approximate): 1.20 kg
Miscellaneous
Certifications & Standards:
- Australia RCM
- Canada cUL
- IC
- China CCC
- Europe CE TUV
- Japan VCCI
- Korea KCC
- Mexico CoC
- Taiwan BSMI
- United States UL
- FCC
- International CB
- RoHS
- China RoHS
- WEEE
Mean Time Between Failures (MTBF): 5.7 Year
TAA Compliant: No
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
