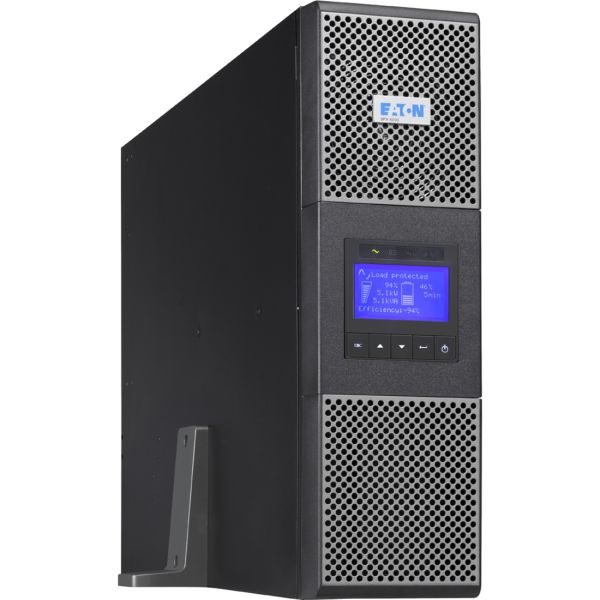

Eaton 9PX 6000i RT3U Netpack

Marketing Information

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX6KIRTN
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX 6000i RT3U Netpack
Product Type: Double ...Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19
• Hardwired

Receptacle Detail:

• 8 x IEC 60320 C13
• 2 x IEC 60320 C19

Power Description
Load Capacity (VA): 6 kVA
Input Voltage:

• 110 V AC
• 220 V AC

Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 70 Hz
Output Frequency: 60 Hz
Management
Emergency Power OFF: Yes
Interfaces/Ports
Serial Port: Yes
USB: Yes
Battery Information
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 8 Minute
Physical Characteristics
Form Factor: Rack/Tower
Rack Height: 3U
Height: 440 mm
Width: 130 mm
Depth: 685 mm
Weight (Approximate): 48 kg
Miscellaneous
Package Contents:

• 9PX 6000i RT3U Netpack
• Rail Kit

Warranty
Limited Warranty: 2 Year
