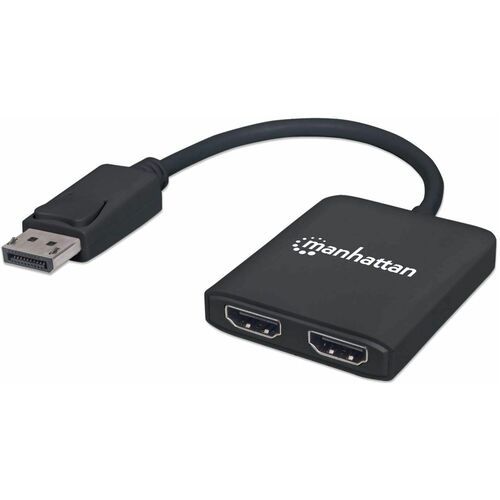

Manhattan DisplayPort to Dual HDMI - MST Hub

Marketing Information

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays

The Manhattan DisplayPort to Dual HDMI - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.

Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual HDMI - MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gami...ng, in a conference setting or in a home office.

Quality Construction and Easy Installation

Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual HDMI - MST Hub can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete — no software/hardware configuration or complicated settings required.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 152716
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: DisplayPort to Dual HDMI - MST Hub
Package Type: Retail
Product Type: Signal Splitter
Video
Maximum Video Resolution: 3480 x 2160
Interfaces/Ports
DisplayPort: Yes
HDMI Out: Yes
USB: Yes
Number of DisplayPort Inputs: 1
Number of HDMI Outputs: 2
Physical Characteristics
Product Material: Plastic
Connector Plating: Gold
Height: 11 mm
Width: 50 mm
Length: 250 mm
