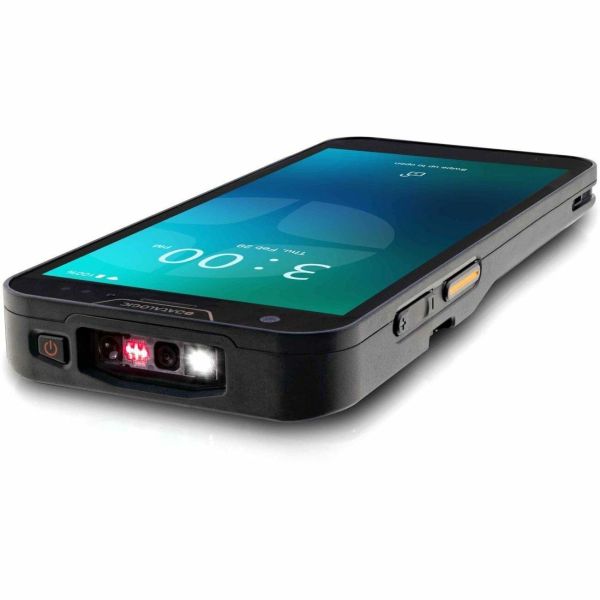

Datalogic Memor 30-35 Memor 35 Handheld Terminal

Marketing Information

SUPERIOR FLEXIBLE DATA CAPTURE PERFORMANCE

Embedding new Datalogic Halogen DE2121-DL and DE2121-ER scan engines, the Memor 30-35 family delivers impressive versatility for any application in an extended range of working distances from 5 cm / 1.97 in up to 10 m / 32.8 ft.

State-of-the-art DeepSight integrated technology provides superior sensitivity and high visible illumination system, guaranteeing first-class reading performance even in extreme light and dark environments. Its outstanding motion tolerance allows to decode poorly printed barcodes as well as barcodes on mobile device screens.

Datalogic's Green Spot technology enhances productivity providing good-read feedback directly on the label. A powerful 13 MP ...rear camera helps to capture damaged goods and barcodes.

Memor 30-35 leverages more than half a century of decoding library knowhow to deliver superior decoding performance on any application.

STREAMLINED COMPUTING AND CONNECTIVITY

Based on the latest generation enterprise grade Octa-Core Qualcomm chipset, Memor 30-35 delivers unmatched processing power and industryleading performance with future-proof connectivity technologies: Wi-Fi 6/6E, Bluetooth 5.2; and on Memor 35 models: 5G, CBRS for private LTE networks and Band 14 for US Public Safety

EASE OF USE AND VERSATILITY

With a full HD+ 6" bright touch screen display, users can operate in any kind of lighting and weather conditions using fingers, gloves, and a stylus. Multi-side NFC patented 360° reading capability eases quick acceptance of contactless payments. Smart long-lasting battery, integrated Qi compatible wireless charging and SafeSwap technology optimize battery lifetime, controlling battery health and ensuring uninterrupted operations even for challenging use cases.

The 8 MP front camera and PTT key provide hi-definition video calls and instant communication. SoftSpot enhances the user experience providing a configurable scan trigger on the display for smoother operations.

Memor 30-35 enhances the customer investment by easily switching a mobile device to a desktop workstation thanks to the docking station/charger accessory.

PROVEN RELIABILITY

An enterprise grade rugged industrial design with MIL-STD-810H, IP65/ IP68 protection and a Gorilla® Glass 5 touch panel provide reliable proven performances against dust (no ingress), water (resists under 1 m / 3.2 ft for more than 30 mins), and repeated drops/tumbles onto concrete.

FUTURE PROOF: LOWER TCO AND SUSTAINABILITY

Powered by Datalogic Mobility Suite that offers a set of comprehensive software tools for effective deployment, enhanced lock-down security measures, and full Android Enterprise integration, Memor 30-35 elevates asset performance and ensures sensitive data protection.

A future proof device with longevity up to Android 18 ensures a lower total cost of ownership for the company.

EASEOFCARE services guarantee worldwide post sales assistance on hardware and software and include the Datalogic Shield security monthly updates.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: 944850002
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Memor 30-35
Product Model: Memor 35
Product Name: Memor 30-35 Memor 35 Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Image Sensor Type: Imager
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Wireless Charging: Yes
Sensor Type:

• Accelerometer
• Gyroscope
• Ambient Lighting
• Proximity
• Magnetometer
• Barometer

Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano
Brightness: 500 cd/m²
Features:

• Push-to-talk
• Green Spot Technology
• Vibration Alert
• Water Resistant
• Gorilla Glass 5
• eSIM

Drop Specification:

• Multiple 1.8m/6ft drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with rubber boot per MIL STD 810 H
• Multiple 1.2/4ft m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) per MIL STD 810 H

Illumination Type: LED
Scan Mode: Trigger
Processor & Chipset
Processor Model: QCS4490
Processor Core: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Memory
Standard Memory: 6 GB
Flash Memory: 128 GB
Display & Graphics
Screen Size: 15.2 cm (6")
Screen Mode: Full HD+
Screen Resolution: 2160 x 1080
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 5
Network & Communication
Wireless LAN: Yes
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2 BLE
Near Field Communication (NFC): Yes
Cellular Network Supported:

• GSM
• WCDMA

Cellular Data Connectivity Technology:

• 5G
• 4G
• 3G
• 2G
• LTE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 8 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 13
Upgradable Operating System: Android 18
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4680 mAh
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 70°C
Physical Characteristics
Product Color: Black
Form Factor: Phone-size
Rugged: Yes
Weight (With Battery): 314 g
Miscellaneous
Application/Usage:

• Transportation
• Retail
• Logistics
• Manufacturing
• Inventory Management
• Hospitality
• Warehouse
• Asset Tracking
• Field Sales/Service
• Direct Store Delivery (DSD)
• Proof of Delivery/Pickup (Signature & Photo)

Ingress Protection (IP) Rating:

• IP65
• IP68
