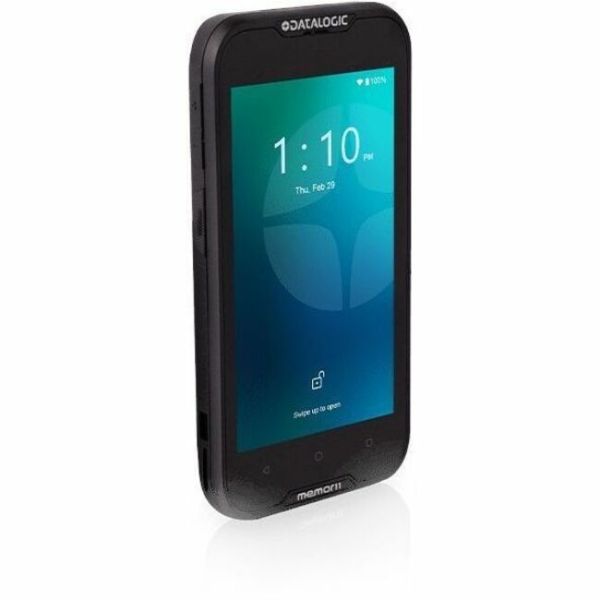

Datalogic Memor 11 Handheld Terminal

Marketing Information

MEMOR™ 11 FAMILY OF MOBILE COMPUTERS

Optimized performance and flexibility in a market-proven design

FLEXIBILITY TAILORED FOR YOUR WORKFORCE

The Memor 11 family is designed to provide a versatile solution for today's mobile workforce. With an up-to-date operating system and enhanced processing capabilities, this family of devices deliver superior scanning performance and all-around efficiency. Whether you require flexibility in Retail, Warehouse, Manufacturing, or Transportation & Logistic applications, the Memor 11 family is built to meet your needs. Choose between Wi-Fi only or Wi-Fi/Cellular models to always be connected within your premises or wherever you go.

RUGGED AND COMPA...CT DESIGN IN AN ENTERPRISE-GRADE FORM FACTOR

The market-proven, semi-rugged, and compact design of the Memor 11 follows the highly successful Memor 10 and can withstands more tumble hits than most comparable devices in the market.

ADVANCED BATTERY MANAGEMENT AND WIRELESS CHARGING

Agile performance due to its long-lasting swappable battery and embedded SafeSwap™ Technology which ensures uninterrupted continuity. Its effective wireless charging system provides ultra-reliable contactless charging that helps reduce maintenance and promotes efficient charging. IMPROVED SCANNING PERFORMANCE Heighten scanning performance in dark warehouse environments with the high-end 2D scan engine, plus increased accuracy and efficiency when paired with Datalogic's exclusive 'Green Spot' Technology in scan-intensive settings.

ENTERPRISE-READY SOLUTION; A SECURE INVESTMENT

Certified as an Android™ Enterprise Recommended device with fortified security and privacy settings of Android 11, plus the benefits of Google Mobile Services.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: 944900003
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: Memor 11
Product Name: Memor 11 Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Image Sensor Type: Imager
Light Source: LED
Google Mobile Services (GMS): Yes
Wireless Charging: Yes
Sensor Type:

• Magnetometer
• eCompass
• Accelerometer
• Gyroscope
• Ambient Lighting
• Proximity

Number of SIM Card Supported: 1
SIM Size Supported: Micro
Features:

• Oil Resistant
• Green Spot Technology
• Drop Resistant
• Chemical Resistant

Drop Specification:

• Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot)
• Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot)
• Tested onto steel/ concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.

Illumination Type: LED
Processor & Chipset
Processor Core: Octa-core (8 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• microSDHC

Display & Graphics
Screen Size: 12.7 cm (5")
Screen Mode: HD
Screen Resolution: 720 x 1280
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 5
Network & Communication
Wireless LAN: Yes
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Near Field Communication (NFC): Yes
Cellular Network Supported:

• WCDMA
• GSM

Cellular Data Connectivity Technology:

• 4G
• 3G
• 2G
• 4G LTE
• LTE Advanced
• LTE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 11
Upgradable Operating System: Android 13
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4100 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.80 V
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 70°C
Physical Characteristics
Product Color: Black
Rugged: Yes
Weight (With Battery): 285 g
Miscellaneous
Application/Usage:

• Retail
• Hospitality
• Warehouse
• Manufacturing
• Asset Tracking
• Field Sales/Service
• Direct Store Delivery (DSD)
• Inventory Management
• Order Picking
• Proof of Delivery/Pickup (Signature & Photo)
• Healthcare
• Transportation
• Logistics

Ingress Protection (IP) Rating: IP65
Warranty
Additional Warranty Information:

1-Year Factory Warranty
