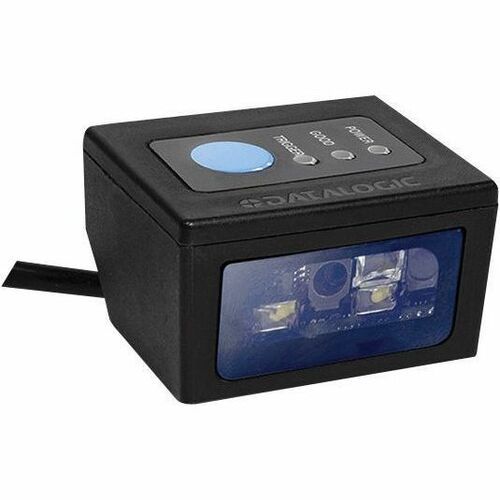

Datalogic DSM04XX Fixed Scan Module

Marketing Information

BIG PERFORMANCE IN A SMALL PACKAGE

The DSM04XX Fixed Scan Module is the solution you need for high performance fixed position scanning in a compact form factor. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium.

RUGGED CONSTRUCTION

The enclosure is constructed with high impact resin that is resistant to cleanings solvents and disinfectant solutions. IP54 particulate and water sealing allows rugged and dependable scanning performance.

SIMPLE INTEGRATION

The DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. Inc...luded mounting hardware allows mounting from all sides of the device at any angle. Interface options include USB, RS-232 or multi-interface models allowing 'plug-and-play' installation perfect for integrators who must support multiple platforms and applications.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: DSM0452-WA
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Model: DSM04XX
Product Name: DSM04XX Fixed Scan Module
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

All standard 1D codes including:

• UPC/EAN/JAN
• P2 / P5 add-ons
• Code 39
• Italian Pharmacode 39
• Code 128
• C128 ISBT
• I 2 of 5
• Standard 2 of 5
• Interleaved 2 of 5
• Industrial 2of 5
• Datalogic 2of5
• IATA; Code 11
• Codabar
• ABC Codabar
• EAN 128
• Code 93
• MSI/Plessey
• RSS-14
• BC412
• Databar Limited
• Databar Omnidirectional
• Databar Expanded
• IATA
• Trioptic
• Matrix 2/5
• Telepen
• Composite codes CC-A
• CC-B
• CC-C

2D:

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code

Postal Codes:

• Australian Post
• British Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Korea Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

Stacked Codes:

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger/Sense
Scanning Distance: 599.44 mm
Features:

• Beep
• Notification LED
• Grayscale Image Capture

Field of View (Horizontal): 52°
Field of View (Vertical): 40°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 180°
Image Formats:

• BMP
• JPEG

Maximum Ambient Light: 100000 lux
Drop Specification:

• Withstands repeated drops from 3 ft onto a concrete surface.

Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (DataMatrix): 0.38 mm
Image Sensor Resolution: 752 x 480
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface: Serial
Power Description
Standby Current: 50 mA
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Rugged: Yes
Color Family: Black
Product Color: Black
Product Material: Resin
Durability:

• Water Resistant
• Dust Resistant

Weight (Approximate): 155 kg
Miscellaneous
Ingress Protection (IP) Rating: IP54
Application/Usage:

• Retail
• Self-checkout
• Ticketing
• Manufacturing
• Healthcare

Platform Supported:

• Android
• Linux
• PC

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
