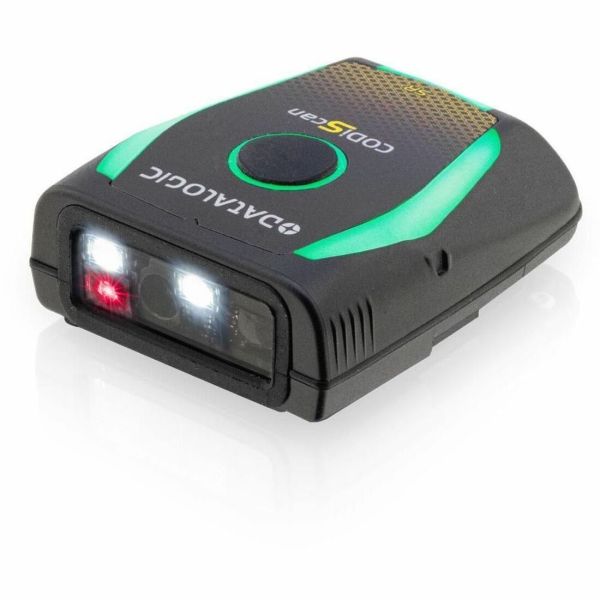

Datalogic Codiscan Bluetooth Wearable Scanner

Marketing Information

SLIM, LIGHT, PORTABLE: UNFOLD MASSIVE PRODUCTIVITY

With a minimal footprint and a lightweight feel, the new CODiScan enables a comfortable and non-intrusive hands-free solution that allows workers to be faster improving the quality of their work. Compared to traditional handheld readers, CODiScan achieves a weight savings of up to 1.5 tons per shift and avoids the need to set down and pick up the scanner, eliminates non value-added steps, providing higher scanning accuracy and a drastic error reduction, saving 4 seconds per scan with up to 33% less errors.

CUTTING-EDGE INNOVATION TO ASSIST YOUR WORKER

CODiScan provides a smart aiming system that helps to identify the framed barcode before scanning it. A comp...lete set of good-read feedback helps the worker speed up operations:

High visible LEDs on the device (2 lateral blades and a rear spot) enhance feedback visibility from every angle.

Datalogic's Green Spot allows the user to see the feedback directly on the scanned item, saving time and improving accuracy.

Vibration and audio complete an advanced set of feedback notices

NO DOWNTIMES TO REACH YOUR TARGETS

CODiScan runs up to 16 hours and 12,000 scans with a single 2 hour charge using different charger options (1-slot, 2-slot modular up to 6 slots, 12-slots). CODiScan instantly captures 1D/2D barcodes and images. A multi-functional key allows workers to use the same device in different mounting options and easily check the battery status, connectivity, and other custom functions. CODiScan can be held in multiple ways: on the hand, neck or belt. The hand trigger is a 'one size fits all' adjustable solution and is available for the right or left hand. It's modular, meaning the electronic side can be separated by the fabric, which is washable, or can be changed reusing the trigger system.

EASY TO USE, EASY TO CONFIG, EASY TO DISPOSE

CODiScan come with the Datalogic Aladdin software suite and can be paired to any Android™ mobile computer through the Aladdin App, allowing easy pairing, firmware updates, main parameters and symbology settings. CODiScan can also streamline working flows of a fixed station using the gateway connected to a PC or via Wi-Fi to the cloud. The Aladdin web page and Aladdin stand-alone guarantee a full-set configuration by barcode generation or file transfer. Handtrigger is modular which makes it easy to wash and dispose of the fabric separately from the electronics.

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: HS7600RT
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: CODiScan
Product Name: Codiscan Bluetooth Wearable Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D / Linear Codes:

• Auto decodes all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

• PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode

Postal Codes:

• US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX)

Scan Mode: Trigger
Scanner Range: High Density
Scanning Distance: 599.44 mm
Features:

• Vibration
• Beep
• Ergonomic Design
• Notification LED

Field of View (Horizontal): 42°
Field of View (Vertical): 32°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 180°
Maximum Ambient Light: 100000 lux
Drop Specification:

Resists multiple drops from 1.8 m / 5.9 ft onto concrete - IEC 60068-2-31:2008 - 1

Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Image Sensor Resolution: 1280 x 960
Network & Communication
Bluetooth: Yes
Battery Information
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 640 mAh
Maximum Battery Run Time: 16 Hour
Maximum Battery Recharge Time: 2.15 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 60°C
Physical Characteristics
Form Factor: Wearable
Color Family: Dual Colour
Product Color:

• Black
• Green

Weight (Approximate): 44 g
Miscellaneous
Ingress Protection (IP) Rating: IP54
Application/Usage:

• Transportation
• Logistics
• Warehouse
• Picking
• Packing
• Sorting
• Retail
• Manufacturing
• Assembly Line
• Inventory
• Healthcare
• Laboratory
• Pharmacy

Platform Supported:

• PC
• Android

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 1 Year
