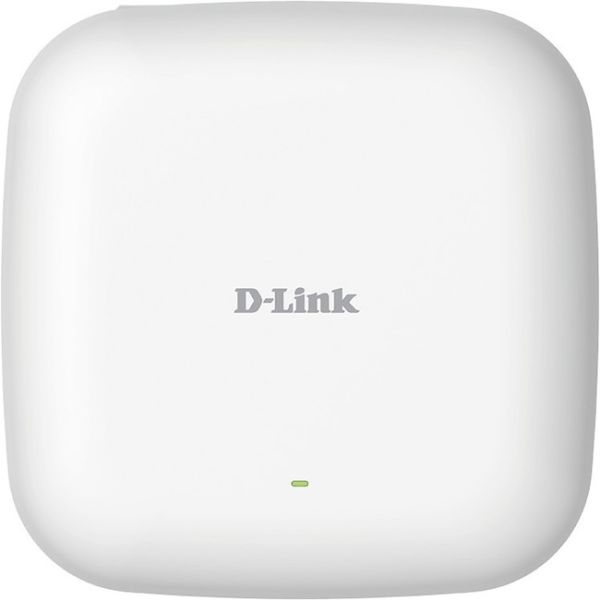

D-Link Nuclias DAP-X2810 Dual Band IEEE 802.11 a/b/g/n/ac/ax 1.76 Gbit/s Wireless Access Point

Marketing Information

The Wi-Fi 6-ready DAP-X2810 is on hand to provide unbeatable speeds, greatly increased capacity and interference-free coverage, paired with easy management by Nuclias Connect.

• Easy to manage with D-Link's free centralized management softwarebased solution, Nuclias Connect
• Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards
• MU-MIMO slices through congestion, reducing wait time for all users
• Superior throughput with dual-band Wi-Fi offers high transfer speeds
• Coverage is shared more efficiently over more users with Airtime Fairness
• Band Steering intelligently manages users, pushing them onto the higher radio fr...equency when possible
• One PoE Gigabit LAN port offers expansive backhaul to your wired network, eliminating bottlenecks at the AP
• Support for Power of Ethernet 802.3at means less wires, for cleaner and easier deployment
• One RJ45 Console port for debugging
• Stay secure with the latest WPA3™ Personal & Enterprise wireless encryption
• Supports multiple AP modes to ensure performance optimization based on your network's needs (AP/WDS with AP/WDS)
• MAC Address Filtering and WLAN Partitioning ensure ultimate control of your network's access
• Captive Portal with industry-standard authentication for enhanced access management
• Works as a standalone AP or as part of a centralized, scalable multi-device deployment

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DAPX2810
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Line: Nuclias
Product Model: DAP-X2810
Product Name: Nuclias Connect AX1800 Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 2
Number of Internal Antennas: 2
Wireless Transmission Speed: 1.76 Gbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA3
• WPA-PSK
• WPA3-PSK
• 128-bit WEP
• 64-bit WEP
• WPA-ENT
• WPA2-ENT
• WPA3-ENT
• WPA3-Personal

Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Management Port: Yes
Power Description
Power Consumption: 19.44 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Ceiling Mountable

Antenna Form Factor: Internal
Height: 212.4 mm
Width: 212.4 mm
Depth: 46.7 mm
Weight (Approximate): 763.8 g
