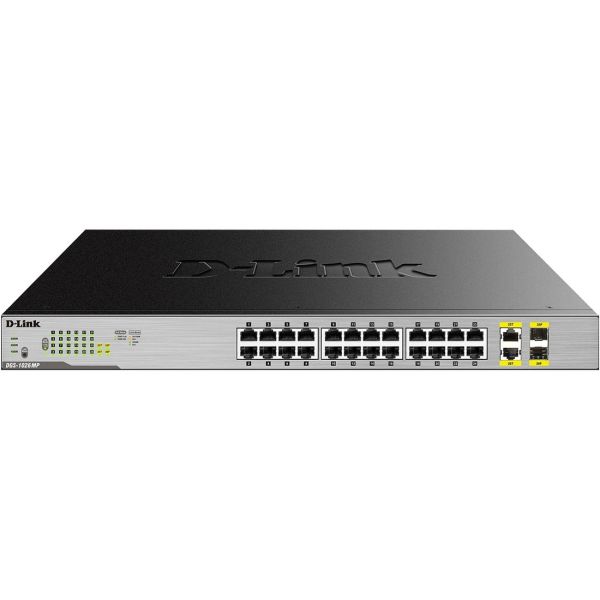

D-Link DGS-1026MP 26 Ports Ethernet Switch - Gigabit Ethernet - 1000Base-T, 1000Base-X, 1000Base-SX, 1000Base-LX

Marketing Information
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

Power over Ethernet

The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

Expand Your Network

With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for u...pstream or downstream server connections via a fibre or copper interface.

Energy Efficient

To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle-Free Setup

The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DGS1026MP
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Model: DGS-1026MP
Product Name: 26 Port Gigabit Max PoE Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 26
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 26 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X
• 1000Base-SX
• 1000Base-LX

I/O Expansions
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Desktop
• Rack-mountable

Height: 44 mm
Width: 440 mm
Depth: 250.4 mm
Weight (Approximate): 3.10 kg
