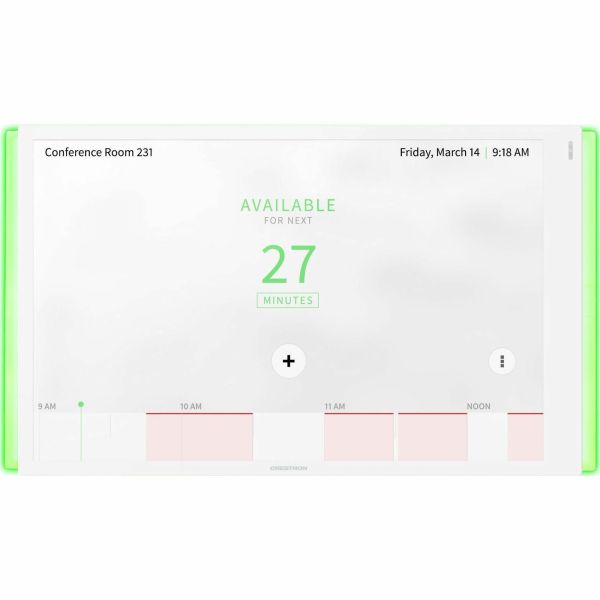

Crestron TSS-1070-W-S-LB KIT Room Scheduling Touch Screen

Marketing Information

Crestron TSS-1070 series touch screens are designed to enhance and simplify room scheduling across an enterprise. The TSS-1070 installs near a meeting room or huddle space to provide a clear indication of its availability and scheduling and integrates seamlessly with a variety of popular scheduling services. The TSS-1070-LB KIT includes one TSW-1070-LB series room availability light bar with the touch screen, providing for a complete room scheduling solution out of the box.

Crestron Room Scheduling App

The native Crestron Scheduling app helps to maximize productivity and manage usage for meeting spaces. If desired, the room can be reserved on the spot for an ad hoc meeting. A CEN-ODT-C-POE occupancy ...sensor (sold separately) can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage. Crestron room scheduling also offers three levels of customization-ranging from simply configuring settings in the web user interface to modifying the application source code for a completely unique appearance-depending on the needs of an enterprise.

Running the Crestron Scheduling App, the TSS-1070 integrates directly with Crestron Fusion software, Microsoft Exchange Server software (for users of Outlook software and Office 365 software), the Google Calendar calendaring app (including G Suite software), CollegeNET 25Live scheduling software, or Ad Astra software. IBM Notes software is also supported through a Crestron Fusion on-premises server.

Third-Party Scheduling Apps

The TSS-1070 includes support various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.

Built for Enterprise Scheduling Applications

The TSS-1070 is engineered to meet the demands of a corporate office, conference center, or education environment. Its 10.1 in. (257 mm) capacitive display provides an intuitive user interface. The UI can be customized and branded with your choice of background images and logos.1 A smaller 7 in. (178 mm) version (TSS-770 series) is also available.

• Functional: The TSS-1070 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-1070 offers high-speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi-Fi® communications via a local wireless access point (WAP).

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: TSS-1070-W-S-LB KIT
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Series: TSS-1070
Product Model: TSS-1070-W-S-LB KIT
Product Name: TSS-1070-W-S-LB KIT Room Scheduling Touch Screen
Packaged Quantity: 1
Product Type: Room Scheduling Touch Screen
Technical Information
Maximum Number of Buttons: 6
Features:

• Status Indicator
• LED Indicator

Physical Characteristics
Height: 149.10 mm
Width: 258.57 mm
Depth: 57.91 mm
Weight (Approximate): 730.3 g
Product Material:

• Plastic
• Glass

Miscellaneous
Package Contents:

• TSS-1070-W-S-LB KIT Room Scheduling Touch Screen
• TSW-1070-LB-W-S Light Bar

Application/Usage:

• Meeting Room
• Huddle Area
• Meeting
• Corporate
• Office
• Conference Center
• Education
• Commercial

Form Factor:

• Wall Mountable
• Surface-mountable
• Rack-mountable
