Crestron Flex UC-B70-A-Z-I Video Conference Equipment

Marketing Information

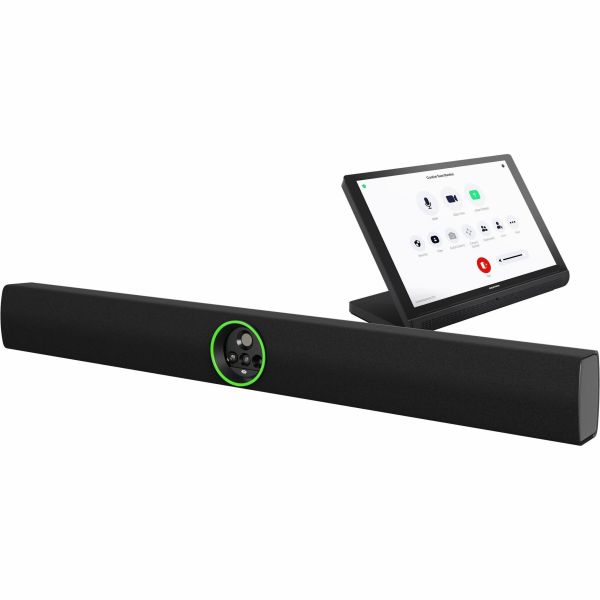

The UC-B70-A-Z-I Crestron Flex tabletop conferencing system provides a medium to large room video conference solution for use with Zoom Rooms software. It simplifies the communications and collaboration needs with fewer components and maximum efficiency. The UC-B70-A-Z-I features a 10 in. tabletop touch screen, Crestron Videobar 70 with intelligent high-definition video and audio, a PoE injector, and cables. The UC-B70-A-Z-I also supports up to two video displays1 (not included).

he UC-B70-A-Z-I conferencing solution delivers a hassle-free setup and installation, better space utilization, a cleaner and visually appealing environment, easy collaboration and content sharing, and scalable deployment.

High-Definition Video Confe...rencing with Impressive Audio

The powerful and elegant all-in-one (AIO) Crestron Videobar 70 provides a convenient and compact conferencing solution for medium to large-sized meeting rooms. It comprises:

• A quad-camera setup that captures the full room in 4K, automatically tracks and frames the presenter or everyone in the room based on its configuration, and enhances the video content using AI.
• 10-watt dual speakers produce full, rich, and natural sounding audio. Additional digital signal processing with AEC and noise reduction assures optimal sound quality for an immersive experience.
• throughout the room using adaptive beamforming technology. AI noise cancellation is also provided to ensure crystal-clear communication with exceptional audio fidelity and pickup.
• Android OS running on the QCS8250 chipset that ensures a smooth and reliable conferencing experience every time.

Native Zoom Rooms Software Experience

The UC-B70-A-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Android OS-Based Conferencing System

As an Android OS-based conferencing system, the UC-B70-AZ-I provides a consistent, secure Zoom Rooms® experience. The system's tabletop controller and Videobar 70 both run on Android OS to ensure compliance with enterprise requirements.

Intuitive User Interface

With a large10 in. (254 mm)capacitive touch screen display, the Crestron tabletop touch screen (TS-1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

The AIO Crestron Videobar 70 comes with one ready-tomount wall bracket allowing the video bar to install cleanly beneath the display - connect the displays and touch screen and mount.

Enterprise-Grade Security

Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to Crestron Videobar 70. System updates are controlled by Crestron Auto update, XiO Cloud service, and Zoom Device Manager (ZDM).

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6513243
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: Flex
Product Model: UC-B70-A-Z-I
Product Name: Flex UC-B70-A-Z-I Video Conference Equipment
Product Type: Video Conference Equipment
Technical Information
Features:

• Multi-touch Screen
• AI Noise Reduction
• Noise Reduction
• Acoustic Echo Cancellation (AEC)
• Automatic Gain Control

Room Size: Medium/Large
Camera
Total Number of Cameras: 4
Camera Resolution: 20 Megapixel
Video
Graphics Modes (Live): 4K
Maximum Video Resolution (Live): 3840 x 2160
Audio
Microphone Form Factor: Internal
Network & Communication
Network Technology: 100/1000Base-T
Ethernet Technology: Gigabit Ethernet
Wireless Specifications
Wireless LAN: Yes
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Audio Line In: Yes
Audio Line Out: Yes
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 2
Number of HDMI Outputs: 3
Number of Audio Line In: 1
Number of Audio Line Out: 1
Power Description
Power Source: AC Supply
Operating System
Operating System Supported: Android
Physical Characteristics
Product Color: Black
Form Factor:

• Bracket Mount
• Wall Mountable
• Display Mount
• Tabletop

Miscellaneous
Package Contents:

• Flex UC-B70-A-Z-I Video Conference Equipment
• 10 in. (254 mm) Tabletop Touch Screen, Black
• Crestron Videobar 70
• Ethernet LAN Cable for UC Engine, RJ-45-to-RJ-45, black, 7 ft (2.1 m)
• 2 x HDMI 2.1 Cable, 6 ft (1.8 m)
• HDMI 2.1 Cable, 22 ft (6.7 m)
• Ethernet LAN Cable, CAT6a, RJ-45-to-RJ-45, blue, 20 ft (6.1 m)
• PoE Injector

Application/Usage:

• Meeting Room
• Huddle Space
• Video Conferencing

Unified Communications Platform: Zoom
Warranty
Limited Warranty: 3 Year
