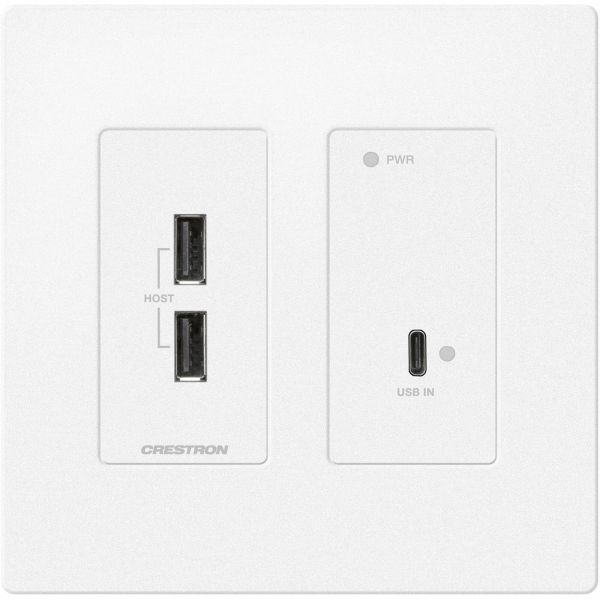

Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort and USB 2.0 Signal Extension over CATx Cable, Wall Plate, White

Marketing Information

The HD-TXU-4KZ-111-2G is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite HD-RXU-4KZ Seriesreceiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-2G to the DM Lite receiver.¹

The HD-TXU-4KZ-111-2G is available in two models: HD-TXU-4KZ-111-2G-B (black) and HD-TXU-4KZ-111-2G-W (white).

Interoperability with a DM Lite HD-RXU-4KZ Series Receiver

For inte...roperability between the HD-TXU-4KZ-111-2G and an HD-RXU-4KZ Series receiver, the DM Lite output port of the HD-TXU-4KZ-111-2G must be connected to the DM Lite input port of the HD-RXU-4KZ Series receiver.

NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Lite receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Lite™ switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).

4K60 4:4:4 and HDR Support

The HD-TXU-4KZ-111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.²

USB 2.0 Data Extension

Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.³

Two-Gang Wall Plate Design

The HD-TXU-4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TXU-4KZ-111-2G can receive power from the remote DM Lite receiver (surface mountable only).

Key Features

• DM Lite® transmitter functionality designed to interoperate with a DM Lite HD-RXU-4KZ Series receiver
• Point-to-point extension of a USB-C® DisplayPort™ AV signal and USB 2.0 data signals over a CAT5e or higher cable
• USB-C input with DisplayPort Alt Mode capability and USB 2.0 support
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Two-gang-wall plate design with white finish
• Decorator style faceplate required (FP-G2-DM Series sold separately)
• Power from the remote DM Lite receiver (surface mountable only)

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6511931
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: DM Lite
Product Model: HD-TXU-4KZ-111-2G-W
Product Name: DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort and USB 2.0 Signal Extension over CATx Cable, Wall Plate, White
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 70.10 m
Video
Graphics Modes:

• 4K
• 4K UHD
• Full HD
• UXGA
• WUXGA
• QWXGA
• 2K

Supported Video Modes: 1080p
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 3
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: White
Product Color: White
Transmitter Height: 104.65 mm
Transmitter Width: 90.68 mm
Transmitter Depth: 43.18 mm
Form Factor:

• Gang Box Mount
• Wall Plate

Transmitter Weight (Approximate): 205.5 g
Miscellaneous
Application/Usage:

• Display
• Projector
• Mouse
• Keyboard

Warranty
Limited Warranty: 3 Year
