Crestron DM Lite 4K60 4:4:4 Transmitter and 2x1 Auto-Switcher for HDMI and USB-C DisplayPort Signal Extension over CATx Cable, Wall Plate, Black

Marketing Information

The HD-TX-4KZ-211-2G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The paired transmitter and receiver enable extension of HDMI® or USB-C® DisplayPort™ AV signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TX-4KZ-211-2G to the DM Lite receiver or DMPS Lite switcher.¹

The HD-TX-4KZ-211-2G is available in two models: HD-TX-4KZ-211-2G-B (black) and HD-TX-4KZ-211-2G-W (white).

Interoperability with a DM Lite Receiver or DMPS Lite Switcher

The... DM Lite output port of the HD-TX-4KZ-211-2G must be connected to a DM Lite input port of a DM Lite 4K60 4:4:4 receiver, DM Lite 4K60 4:2:0 receiver, or DMPS Lite switcher.

The HD-TX-4KZ-211-2G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-211-2G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-211-2G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TX-4KZ-211-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.²

Automatic Switching of Inputs

When the HD-TX-4KZ-211-2G is used with a DMPS Lite switcher, the web interface of the switcher or control system programming hosted by the switcher can be used to configure AV switching behavior. Switching between the HDMI and USB-C DisplayPort inputs occurs based on the last connected input or on the routing priority assigned to each input. In addition, the input selection push button on the front of the HD-TX-4KZ-211-2G enables the desired input to be selected manually.

Two-Gang Wall Plate Design

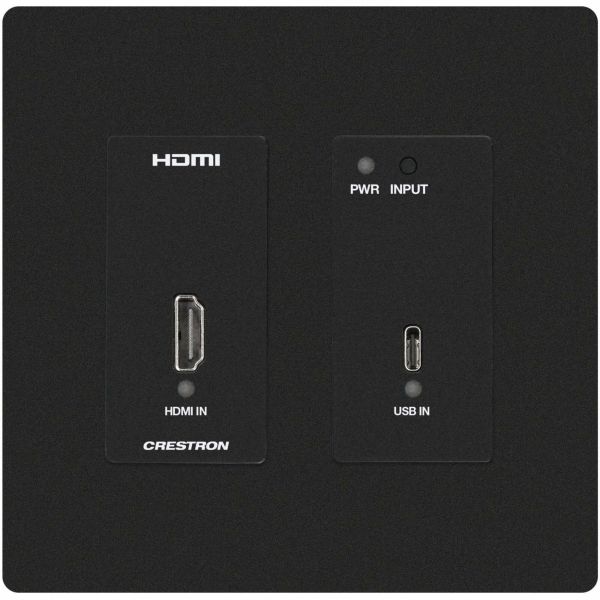

The HD-TX-4KZ-211-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-211-2G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.³

Key Features

• Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
• Point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal over a CAT5e or higher cable
• USB-C input with DisplayPort Alt Mode capability
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• Automatic switching of HDMI and USB-C DisplayPort inputs
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Two-gang wall plate design with black finish
• Decorator style faceplate required (FP-G2-DM Series sold separately)
• Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6511916
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: DM Lite
Product Model: HD-TX-4KZ-211-2G-B
Product Name: DM Lite 4K60 4:4:4 Transmitter and 2x1 Auto-Switcher for HDMI and USB-C DisplayPort Signal Extension over CATx Cable, Wall Plate, Black
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 70.10 m
Video
Graphics Modes:

• 4K
• 4K UHD
• WQXGA
• Full HD
• UXGA
• WUXGA
• 2K
• QWXGA

Supported Video Modes:

• 1080i
• 1080p

Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Number of HDMI Inputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 104.65 mm
Transmitter Width: 90.68 mm
Transmitter Depth: 42.16 mm
Form Factor:

• Wall Plate
• Gang Box Mount

Transmitter Weight (Approximate): 207.8 g
Miscellaneous
Application/Usage:

• Display
• Projector
