Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable

Marketing Information

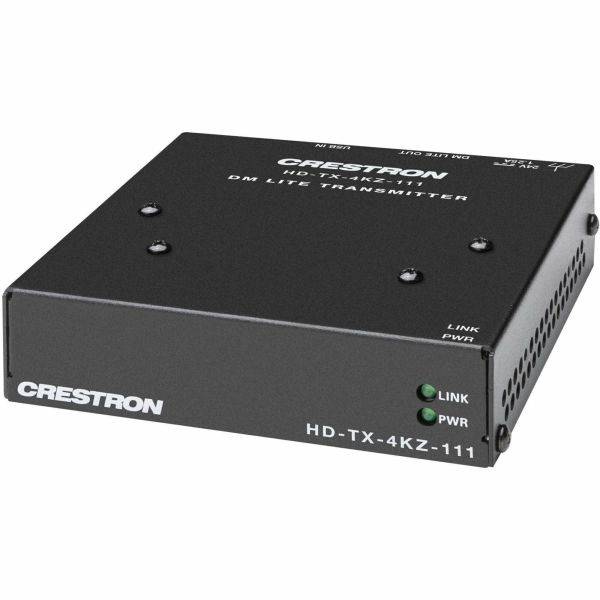

The HD-TX-4KZ-111 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111 includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111 to the DM Lite receiver or DMPS Lite switcher.For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.¹

Interoperability with a DM Lite Receiver or DMPS Lite Switcher

The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input por...t of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DM Lite 4K60 4:2:0 receivers are the HD-RX-101-C-E, HD-RXC-101-C-E, HD-RX-201-C-E, HD-RX-101-C-1G-E, and HD-RXC-101-C-1G-E. Supported DMPS Lite switchers are the HD-PS622, HD-PS621, HD-PS402, HD-PS401, and HD-RX-4K-210-C-E(-POE).

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD-TX-4KZ-111 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111 is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TX-4KZ-111 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.²

Compact, Surface-Mountable Design

Compact in design, the HD-TX-4KZ-111 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TX-4KZ-111 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.

Key Features

• Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
• USB-C® input with DisplayPort™ Alt Mode capability for the point-to-point extension of a DisplayPort AV signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design
• Power from 24VDC power pack (included) or from remote DM Lite receiver or DMPS Lite switcher

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6511805
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: DM Lite
Product Model: HD-TX-4KZ-111
Product Name: DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 70.10 m
Video
Graphics Modes:

• WQXGA
• Full HD
• WUXGA
• 4K
• 4K UHD
• 2K
• UXGA
• QWXGA

Supported Video Modes: 1080p
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Power Description
Power over Ethernet (PoE): Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 104.90 mm
Transmitter Width: 106.17 mm
Transmitter Depth: 27.43 mm
Form Factor:

• Surface-mountable
• Rail-mountable

Transmitter Weight (Approximate): 339.1 g
Miscellaneous
Package Contents:

• DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable
• 2 x Mounting Brackets
• 1 x Desktop Power Pack, 24 VDC, 2.5 A, 2.1 mm

Warranty
Limited Warranty: 3 Year
