Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C® DisplayPort™ Signal Extension over CATx Cable, Wall Plate, Black

Marketing Information

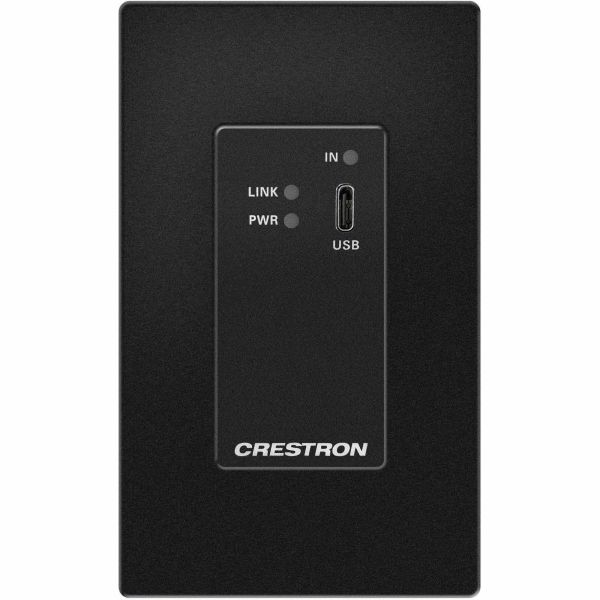

The HD-TX-4KZ-111-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111-1G includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111-1G to the DM Lite receiver or DMPS Lite switcher.For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.¹

The HD-TX-4KZ-111-1G is available in two models: HD-TX-4KZ-111-1G-B (black) and HD-TX-4KZ-111-1G-W (white).

Interoperability wi...th a DM Lite Receiver or DMPS Lite Switcher

The DM Lite output port of the HD-TX-4KZ-111-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are theHD-RX-4KZ-101,HD-RXA-4KZ-101,HD-RXC-4KZ-101, andHD-RXCA-4KZ-101. Supported DMPS Lite switchers are theHD-PS621,HD-PS622,HD-PS401,HD-PS402, andHD-RX-4K-210-C-E(-POE).

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD-TX-4KZ-111-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111-1G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TX-4KZ-111-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.²

One-Gang Wall Plate Design

The HD-TX-4KZ-111-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-111-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.³

Key Features

• Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
• USB-C® input with DisplayPort™ Alt Mode capability for the point-to-point extension of a DisplayPort AV signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• One-gang wall plate design with black finish
• Decorator style faceplate required (FP-G Series sold separately)
• Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6511803
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: DM Lite
Product Model: HD-TX-4KZ-111-1G-B
Product Name: DM Lite 4K60 4:4:4 Transmitter for USB-C® DisplayPort™ Signal Extension over CATx Cable, Wall Plate, Black
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 70.10 m
Video
Graphics Modes:

• 4K
• WUXGA
• 2K
• 4K UHD
• WQXGA
• UXGA
• QWXGA
• Full HD

Supported Video Modes: 1080p
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 104.65 mm
Transmitter Width: 43.69 mm
Transmitter Depth: 55.63 mm
Form Factor:

• Wall Plate
• Gang Box Mount

Transmitter Weight (Approximate): 151.1 g
Warranty
Limited Warranty: 3 Year
