Crestron DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black

Marketing Information

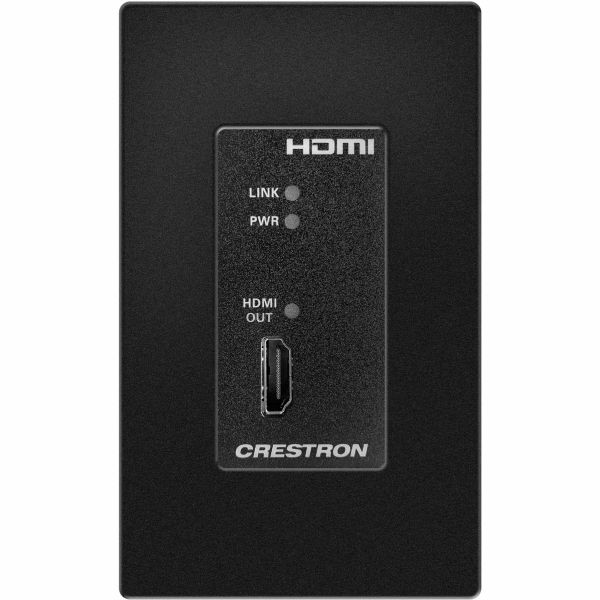

The HD-RX-4KZ-101-1G is a DM Lite® 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Lite® transmitter or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-RX-4KZ-101-1G to the DM Lite transmitter or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1

The HD-RX-4KZ-101-1G is available in black (model HD-RX-4KZ-101-1G-B).

Interoperability with a DM Lite Transmitter or DMPS Lite Switcher

The DM Lite input port of the HD-RX-4KZ-101-1G must be connected to a DM Lite output p...ort of a DM Lite transmitter or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 transmitters are the HD-TX-4KZ-101, HD-TX-4KZ-111, HD-TXA-4KZ-101, HD-TXC-4KZ-101, and HD-TXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, and HD-PS402.

The HD-RX-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-RX-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-RX-4KZ-101-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-RX-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

One-Gang Wall Plate Design

The HD-RX-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RX-4KZ-101-1G can receive power from the remote DM Lite transmitter (surface mountable only) or DMPS Lite switcher.

Key Features

• Interoperability with a DM Lite® transmitter or DMPS Lite™ switcher
• Point-to-point extension of an HDMI® signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• One-gang wall plate design with black finish
• Decorator style faceplate required (FP-G Series sold separately)
• Power from the remote DM Lite transmitter (surface mountable only) or DMPS Lite switcher

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6511812
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: DM Lite
Product Model: HD-RX-4KZ-101-1G-B
Product Name: DM Lite 4K60 4:4:4 Receiver for HDMI Signal Extension over CATx Cable, Wall Plate, Black
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 70 m
Video
Graphics Modes:

• WQXGA
• 4K
• 4K UHD
• Full HD
• UXGA
• WUXGA
• QWXGA

Supported Video Modes:

• 1080i
• 1080p

Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Media & Performance
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: Black
Product Color: Black
Receiver Height: 104.65 mm
Receiver Width: 43.69 mm
Receiver Depth: 55.63 mm
Form Factor:

• Wall Mountable
• Wall Plate
• Gang Box Mount

Receiver Weight (Approximate): 151.1 g
Warranty
Limited Warranty: 3 Year
