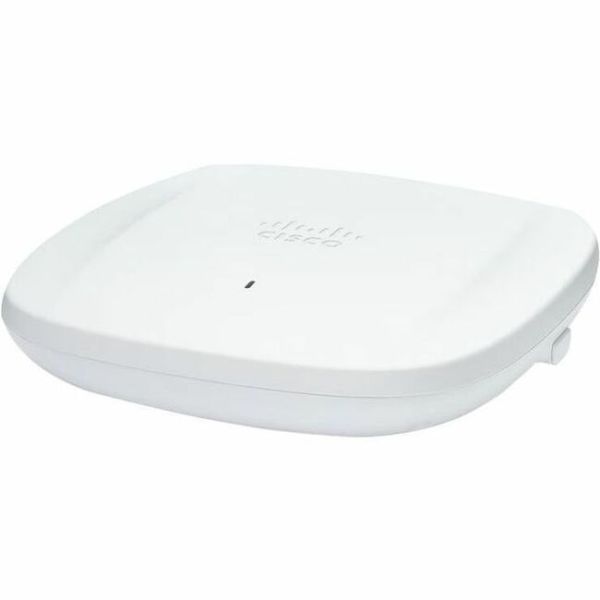

Cisco Catalyst 9136I Wireless Access Point

Marketing Information

The Cisco® Catalyst® 9136 Series Access Points are the next generation of enterprise access points supporting the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent

The Wi-Fi 6E-compliant Catalyst 9136 Series takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with two 4x4 radios and one 8x8 radio and provide a host of features.

Wi-Fi 6E technology extends Wi-Fi 6 into the 6-GHz spectrum, bringing faster speeds and lower latency while also providing more security to the network. As apps become increasingly vital for getting work done, clients need unencumb...ered access to them. Wi-Fi 6E provides that direct access.

• Network speed increases due to the new 6-GHz spectrum and additional bandwidth.
• A new standard of reliability and predictability of connection that is shortening the gap between wireless and wired connections. Wi-Fi 6E devices won't have to share the same spectrum with any devices that are not Wi-Fi 6E compliant and will have an additional 1.2 GHz of no-interference spectrum to themselves.
• Greater network security than ever before, due to mandatory WPA3 security.

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9136IROW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9100
Product Model: 9136I
Product Name: Catalyst 9136I Wireless Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 5
Network Band: Tri Band
Frequency Band:

• 2.40 GHz
• 5 GHz
• 6 GHz

Indoor/Outdoor: Indoor
Wireless Transmission Speed: 10.20 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA2
• WPA3
• WPA

Interfaces/Ports
Ethernet Technology: 5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
USB: Yes
USB Standard: USB 2.0
Management Port: Yes
Network & Communication
Wi-Fi Generation: Wi-Fi 6E
Physical Characteristics
Antenna Form Factor: Internal
Height: 55.9 mm
Width: 251.5 mm
Depth: 251.5 mm
Weight (Approximate): 1.63 kg
Miscellaneous
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
