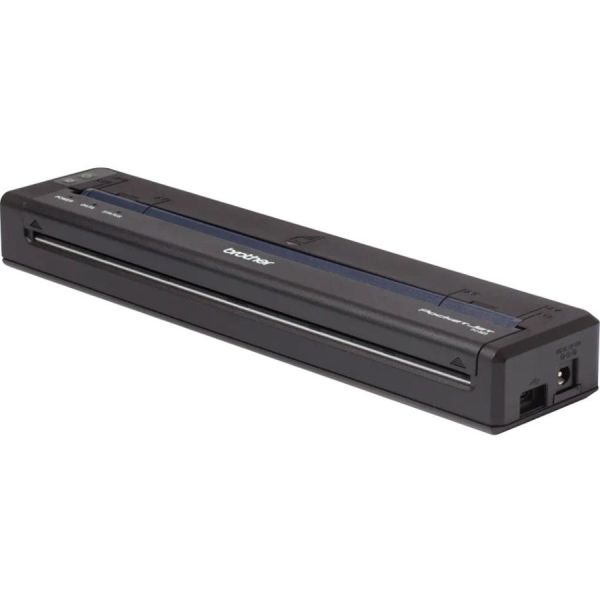

Brother PJ-862 - A4 Mobile Thermal Printer + Bluetooth

Marketing Information

• USB Type-C and Bluetooth connectivity
• 203dpi print resolution
• Up to 13.5ppm print speed
• Android, Windows, Mac and Linux support
• Optional high-capacity Li-ion battery for printing away from power sources
• Customise your print solution with vehicle mounting kit, chargers and protective cases

Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.

The PJ-862 supports both charging and data transfer via USB-C, as well as Bluetooth connectivity to provide a mobile A4 print solution which is compact enough to fit easily into a briefcase or computer bag, but t...hat can also be permanently installed in vehicles.

Thermal print technology at 203x200dpi produces crisp text at a print speed of up to 13.5 pages per minute.

Compatible with a wide range of mobile and desktop operating systems, the PJ-862 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available. Also supports a variety of printer command languages, including ZPL2 emulation.

Specifications
Manufacturer: Brother Industries, Ltd
Manufacturer Part Number: PJ862Z1
Manufacturer Website Address: http://www.brother.co.uk
Brand Name: Brother
Product Model: PJ-862
Product Name: PJ-862 - A4 Mobile Thermal Printer + Bluetooth
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 7.6 lpm
Maximum Print Resolution (dpi): 203 x 200
Maximum Print Length: 279.40 mm
Maximum Print Width: 203.20 mm (8")
Barcode Symbology Supported:

• Code 39
• Code 128
• ITF
• UPC-A/E
• EAN-8
• EAN-13
• UPC-EAN Extensions
• GS1-128
• UCC/EAN 128
• GS1 DataBar
• MSI
• Industrial 2 of 5
• Standard 2 of 5
• POSTNET
• 2D
• PDF-417
• Micro PDF-417
• Data Matrix
• Maxi Code
• QR Code
• Micro QR
• AZTEC
• GS1 DataBar Composite

Application/Usage: Mobile
Features:

• Compact
• Lightweight
• Rugged

Mobile Device Printing: Yes
Print Technology: Direct Thermal
Interfaces/Ports
USB Host: Yes
USB: Yes
Network & Communication
Bluetooth: Yes
Media Types & Handling
Media Type:

• Synthetic Media
• Cut Sheet Paper
• Continuous Roll
• Perforated Paper
• Fanfold
• Label

Media Size:

• A4
• A5
• Letter
• Legal

Media Thickness: 160 µm
Maximum Label Width: 215.90 mm
Fonts & Emulation
Language Emulation:

• ESC/P
• Raster
• ZPL2

Software
Operating System Supported: Windows - 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, Mac OSX - v10.15/11/12, Linux - Redhat, Debian
Environmental Conditions
Operating Temperature: -10°C - 50°C
Operating Relative Humidity: 20% - 80%
Storage Temperature: -20°C - 60°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Form Factor: Portable
Height: 30 mm
Width: 255 mm
Depth: 55 mm
Weight (Approximate): 480 g
Miscellaneous
Cables Included: USB
Platform Supported:

• Android
• PC
• Mac
