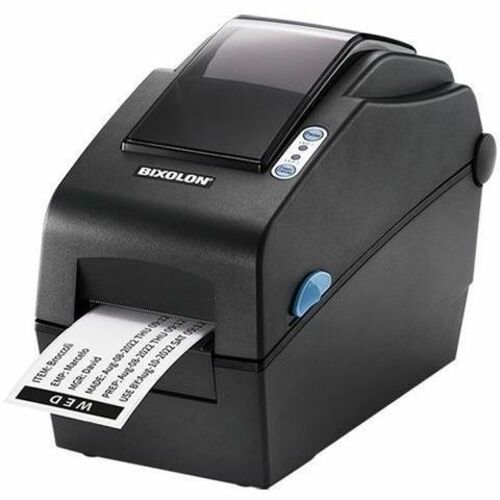

Bixolon SLP-DX220 2 inch Direct Thermal Desktop Label Printer

Marketing Information

Accompanied by a breadth of connectivity and media handling choices, the compact SLP-DX220 offers a durable printing solution. A user-friendly design ensures easy out-of-box setup and ongoing use, plus free-of-charge utilities and device management ensure control of your wired or wireless SLP-DX220 via fixed or mobile devices is possible.Handling a range of programming languages and supporting industry standard 1D and 2D barcode symbologies, the small SLP-DX220 has a huge feature set across two colour schemes - dark grey or ivory to support all of your printing requirements.

Specifications
Manufacturer: Bixolon America, Inc
Manufacturer Part Number: SLPDX220EGBEG
<...span>Manufacturer Website Address: http://www.bixolon.com
Brand Name: Bixolon
Product Series: SLP
Product Model: SLP-DX220
Product Name: SLP-DX220 2 inch Direct Thermal Desktop Label Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 2000 mm
Maximum Print Width: 54 mm (2.13")
Barcode Symbology Supported:

• Codabar
• Code 11
• Code 39
• Code 93
• Code 128
• EAN-13
• EAN-8
• Industrial 2 of 5
• Interleaved 2 of 5
• LOGMARS
• MSI
• Plessey
• POSTNET
• GS1 DataBar (RSS-14)
• Standard 2 of 5
• UPC/EAN
• UPC-A
• UPC-E
• IMB
• AZTEC
• Codablock
• Code 49
• Data Matrix
• Maxi Code
• Micro PDF-417
• PDF417
• QR Code
• TLC 39

Application/Usage: Desktop
Connectivity Technology: Wired
Optional Connectivity:

• Wireless LAN
• Bluetooth

Print Technology: Direct Thermal
Memory
Standard Memory: 64 MB
Flash Memory: 128 MB
Interfaces/Ports
Serial Port: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Ethernet Technology: Ethernet
Media Types & Handling
Media Type:

• Label
• Ticket
• Gap
• Black Mark
• Notch
• Continuous Form
• Fanfold

Media Sensor:

• Transmissive Media Sensor
• Reflective Media Sensor

Media Thickness: 200 µm
Maximum Roll Diameter: 130 mm
Maximum Label Width: 60 mm
Fonts & Emulation
Language Emulation:

• SLCS
• BPL-Z
• BPL-E

Software
Operating System Supported:

Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB / Ethernet Driver, Utility Program, OPOS / JPOS Driver, Bartender Ultralite for BIXOLON, Label Artist-II™, SAP® Device Driver, Network Auto Installer

Power Description
Power Source: Power Adapter
Environmental Conditions
Operating Temperature: 0°C - 40°C
Operating Relative Humidity: 10% - 80%
Storage Temperature: 60°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 170 mm
Width: 120 mm
Depth: 230 mm
Weight (Approximate): 1.36 kg
Miscellaneous
Platform Supported: PC
Energy Star: Yes
