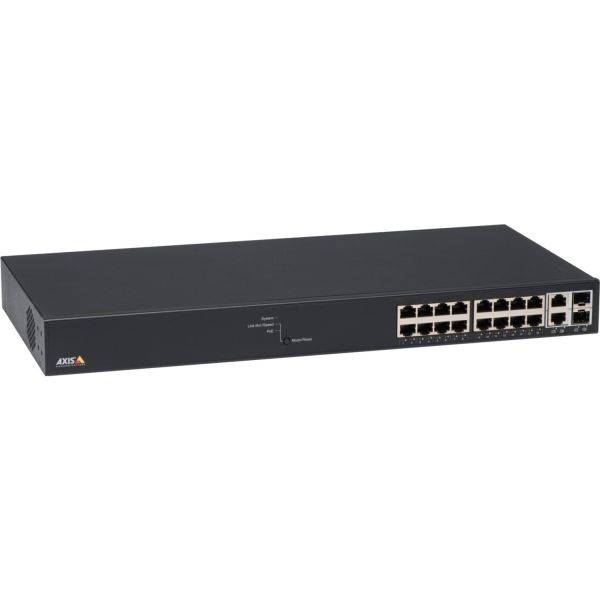

AXIS T8516 PoE+ Network Switch

Marketing Information

• Optimized for surveillance solutions
• Easy installation and configuration
• Unique web graphic user interface

AXIS T8516 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with an unique web graphic user interface with topology for easy overview and management of all devices in the system.

Easy to install and configure

AXIS T8516 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Camera Management. AXIS T8516 also comes with an individual password and easy to use setup wizard.

AXIS T8516 comes with a comprehensive set of configuration tools... such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.

Perfect match for Axis surveillance solutions

AXIS T8516 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.

Total overview with unique web graphic user interface

The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 5801-693
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: T8516
Product Name: T8516 PoE+ Network Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 18
Modular: Yes
Port/Expansion Slot Details:

• 18 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-TX
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:

• Desktop
• Rack-mountable

Height: 44 mm
Width: 442 mm
Depth: 211 mm
Weight (Approximate): 3 kg
Miscellaneous
Package Contents:

• T8516 PoE+ Network Switch
• Installation Guide
• Power Cord
• 19" Ear Rack Kit
• 4 x Rubber Feet
• 2 x SFP Dust Cover

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
